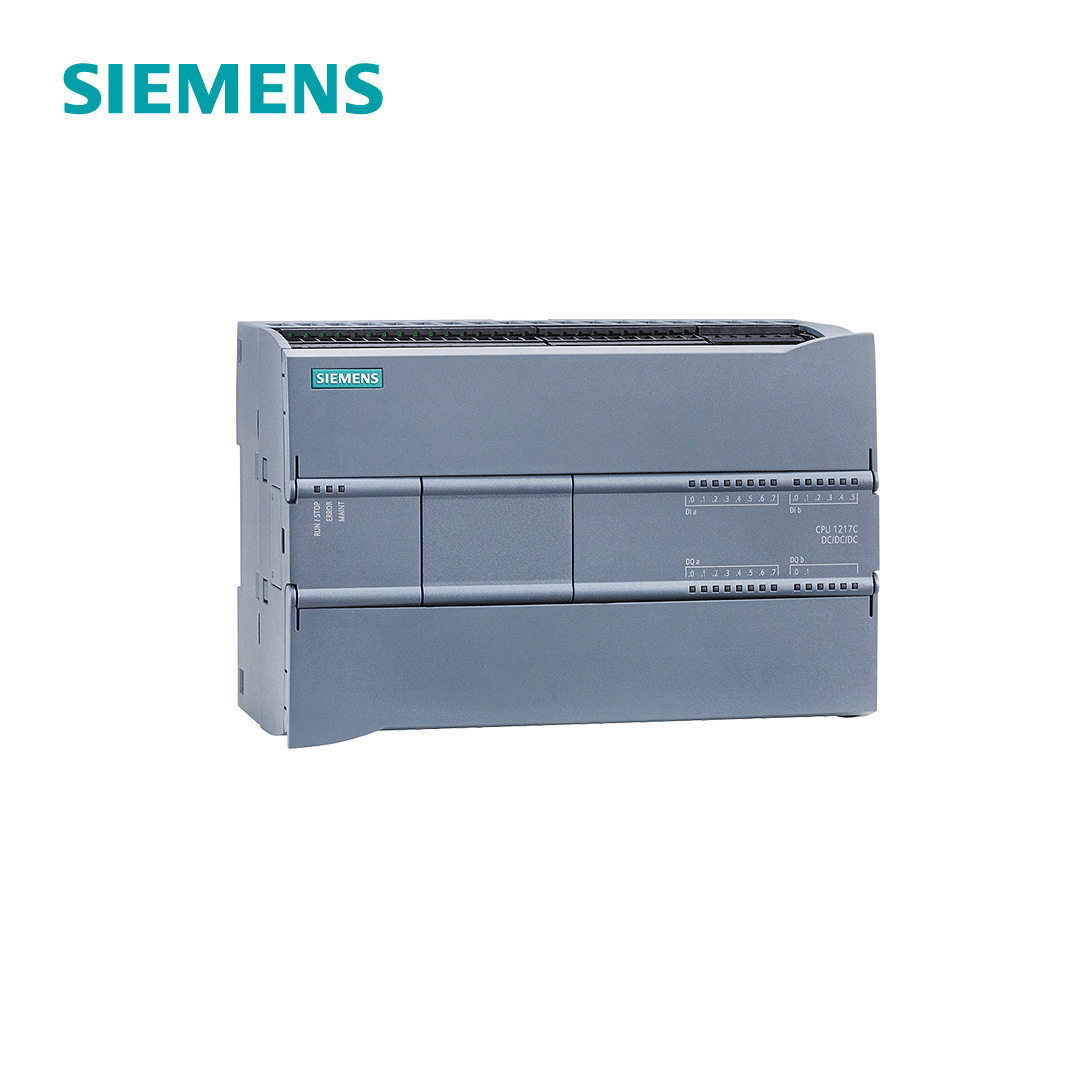

Siemens S7-1200 PLC CPU 24 VDC zum Einsatz mit Serie SIMATIC S7-1200 24 I/O Ports / Digital Transistor Ausgang 6ES7217-1AG40-0XB0
  • 6ES7217-1AG40-0XB0
Siemens S7-1200 PLC CPU 24 VDC zum Einsatz mit Serie SIMATIC S7-1200 24 I/O Ports / Digital Transistor Ausgang 6ES7217-1AG40-0XB0

Model Number: 6ES7217-1AG40-0XB0
Category: SIMATIC S7-1200
Product Type: S7-1200
Type: Interface Module
Place of Origin: Made in China
Warranty: 12 month warranty



Download:
Specification:

Siemens PLC

The Siemens PLC is a high-performance system with a compact and space-saving design. This PLC-CPU has 2 integrated analog inputs, 14 integrated digital inputs and 10 integrated digital transistor outputs. It has integrated I / O and communication interfaces that meet the highest industrial requirements. It is also made possible with a range of powerful integrated technology functions that make this controller an integral part of a comprehensive automation solution. The controller is the heart of the new offering for simple but high-precision automation tasks. It is an ideal choice when it comes to performing automation tasks for a variety of applications in the lower to medium performance range with maximum flexibility and efficiency. Thanks to standardized remote control protocols, you can connect the controller directly to your control center without any programming effort.

Expandable with:

1 signal board (SB) or 1 communication board (CB) 2 signal modules (SM) max. 3 communication modules (CM)

Weight 0.5KG
Processing time (1K, binary instruction)

0.08 ms

Number of HW interfaces Industrial Ethernet 1
Supports protocol for TCP / IP Yes
Supports protocol for ASI Yes
Supports protocol for PROFIBUS Yes
Supports protocol for MODBUS Yes
Supports protocol for other bus systems Yes
Redundancy capability Yes
Mounting rail mounting possible Yes
System component Yes
Front installation possible Yes
Rack mounting possible Yes
Wall / direct mounting possible Yes
Supports protocol for PROFINET IO Yes
Memory size 150 kByte

Type of voltage of the DC supply voltage

DC

Memory type

RAM
ETIM 6 EC001604
Explosion protection category for gas TEX gas explosion protection, cat. 3G
Explosion protection category for dust Without
Packing dimensions 11,30 x 15,90 x 8,80cm
Number of PROFINET interfaces 1
Supply voltage at 28.8 V
Product Feature:

Complex wiring of the safety function (for feedback and possible functional dependency)

Nominal input current: 600 mA, 24 V dc

The operating temperature range is between -20 ° C and 60 ° C.

It has 2 communication ports

Error diagnosis only possible via integrated LEDs and not on a central HMI panel

The reduced effort required for wiring

Efficient fault diagnosis centrally on an HMI panel

Compact design with integrated I / Os and flexibility thanks to the circuit board concept

Security through protected access to the CPU and program copy protection

Integrated functions and flexible connection of drives

The system diagnostics shows error messages in plain text in the TIA portal on the HMI or web server

Fail-safe CPUs for executing standard and safety-related programs

Flexible integration into all network structures AS-i, IO-Link, CANopen or even the connection to remote control centers

Use under extreme environmental conditions

The compact high-performance CPU

Integrated Ethernet interface

Fast counter

Basic PID controller

Integrated real-time clock

Alarm inputs

Removable connections on all modules

Early detection of mechanical damage

Communication protocols such as PROFINET, PROFIBUS, Ethernet, TCP / IP and MODBUS are supported


Order Code:

SIMATIC S7-1200, CPU 1217C, Kompakt-CPU, DC/DC/DC, 2 PROFINET Port onboard I/O: 10 DI DC 24V; 4 DI RS-422/485; 6 DO DC 24V; 0,5A; 4 DO RS-422/485; 2 AI 0-10V DC, 2 AO 0-20mA Stromversorgung: DC 20,4-28,8V DC, Programm-/Datenspeicher 150 KB
