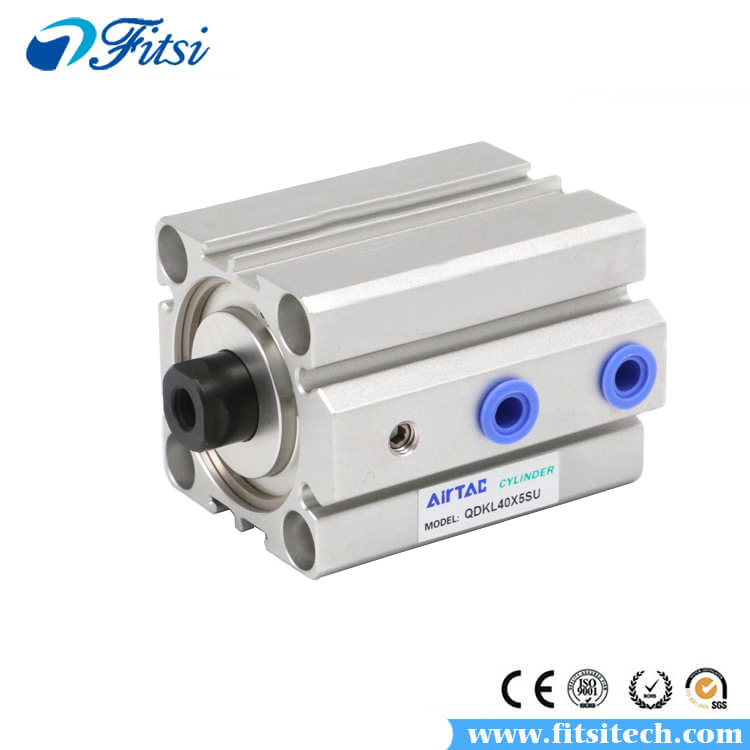

  • QDKL32X5-2
QKD Series Double Acting Horizontal Rotary Clamp Cylinder QDKL20X5SU QDKL25X5SU QDKL32X5SU QDKL40X5SU QDKR20X5SU QDKR25X5SU QDKR32X5SU QDKR40X5SU

Product Name: QKD Series Double Acting Horizontal Rotary Clamp Cylinder
Product Model: QDKL20X5SU QDKL25X5SU QDKL32X5SU QDKL40X5SU QDKR20X5SU QDKR25X5SU QDKR32X5SU QDKR40X5SU
Valve Type: Horizontal Rotary Clamp Cylinder
Brand: AirTAC
Fluid: Air
Acting Type: Double Acting



Download:
Specification:

Specification:

Bore size: 20 25 32 40
Acting type: Double Acting
Fluid:
Air(to be filtered by 40μm filter element)
Operating Pressure: 0.15~1.0MPa(22~145psi)
Temperature(℃): -20~70
Rotation Angle: 90°
Repeataility: ±2°
Rotation Direction:
Turn Left or Turn Right
Rotation Stroke(mm): 0(Horizontal Rotary)
Clamping Stroke(mm): 5
Cushion Type: Bumper
Port Size: M5X0.8 1/8"


Product Feature:

1. Complete rotation on horizontal plane, so more save space compare with QCK series.
2. Boss front end cap and flush front end cap are available.
3. Double pins  in the rotation guide groove to increase stability.
4. There are magnetic switch slots around the cylinder body convenient to install inducting switch.


Installation & Usage:

1. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of impurities into the cylinder.

2. The medium used by cylinder shall be filtered to 40μm or below.

3. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.

4. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust jam cap shall be added in air inlet and outlet ports.

5. To insure the life-span of cylinder and jig, please use flow control valve to control the speed of cylinder.


Order Code:


Symbol:
