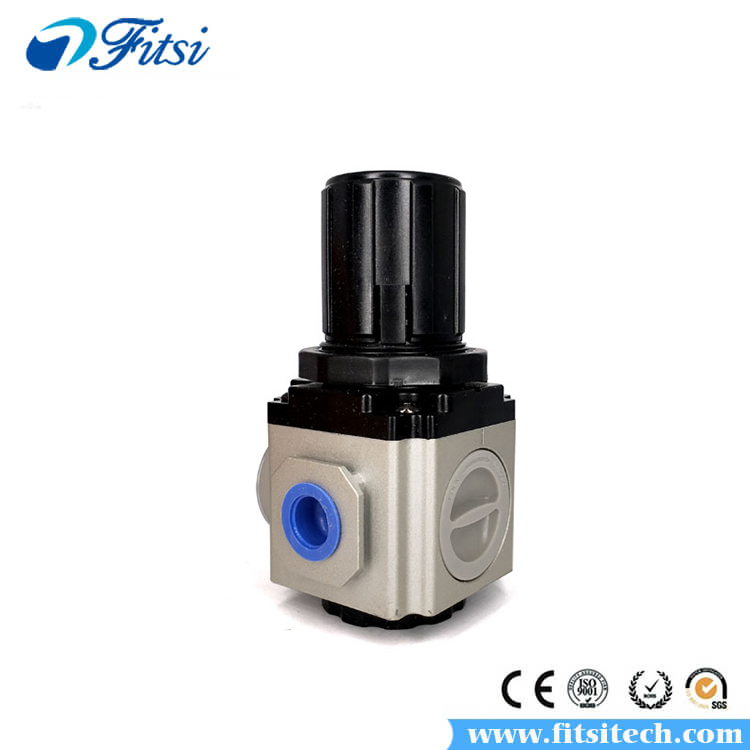

Product Name：GAR Series Regulater Product Model：GAR200-06 GAR200-08 GAR300-08 GAR300-10 GAR300-15 GAR400-10 GAR400-15 GAR500-20 GAR600-20 GAR600-25 Filtering Grade：40μm or 5μm Brand：AiRTAC Fluid： Air Max Supply Pressure：1.0MPa(145psi) Proof Pressure： 1.5MPa(215psi)
|
Model: |
GAR200-06 | GAR200-08 | GAR300-08 | GAR300-10 | GAR300-15 | GAR400-10 | GAR400-15 | GAR500-20 | GAR600-20 | GAR600-25 | |||||
| Fluid: | Air | ||||||||||||||
| Port Size: |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT3/4 | PT1 | |||||
| Filtering Grade: | 40μm or 5μm | ||||||||||||||
| Pressure Range: | 0.05~0.9MPa(7~130psi) | ||||||||||||||
| Max Pressure: | 1.0MPa(145psi) | ||||||||||||||
| Proof Pressure: | 1.5MPa(215psi) | ||||||||||||||
| Temperature Range: | -20~70℃ | ||||||||||||||
| Weight: |
170g |
300g |
570g |
580 |
1390g |
||||||||||
①PT thread, NPT thread and G thread are available.
1.Circular square pressure gauge which with clip and magnifier is used to save installation space.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.Balanced design is adopted for the pressure adjustment mechanism.
4.In addition to panel installation, the bracket is optional for installation.
