Product Name:GAC Series F.R.L Combination
Product Model:GAC200-06 GAC200-08 GAC300-08 GAC300-10 GAC300-15 GAC400-10 GAC400-15 GAC500-20 GAC600-20 GAC600-25
Filtering Grade:40μm or 5μm
Brand:AiRTAC
Fluid: Air
Max Supply Pressure:1.0MPa(145psi)
Proof Pressure: 1.5MPa(215psi)



Download:
Specification:
Model:
GAC200-06 GAC200-08 GAC300-08 GAC300-10 GAC300-15 GAC400-10 GAC400-15 GAC500-20 GAC600-20 GAC600-25
Fluid: Air
Port Size: PT1/8
PT1/4
PT1/4
PT3/8
PT1/2 PT3/8 PT1/2 PT3/4 PT3/4 PT1
Filtering Grade: 40μm or 5μm
Pressure Range: 0.15~0.9MPa(20~130psi)
Max Pressure: 1.0MPa(145psi)
Proof Pressure: 1.5MPa(215psi)
Temperature Range: -5~70℃
Capacity of Drain Bowl: 25CC
60CC
100CC
108CC 205CC
Capacity of Oil Bowl: 36CC
98CC
185CC
225CC 410CC
Recommended Lubricant: ISO VG 32 or Equivalent
Weight: 750g
1300g 2390g 2460g 4600g

Constitube:
Filter: GAF200-06 GAF200
-08
GAF300
-08
GAF300
-10
GAF300
-15
GAF400
-10
GAF400
-15
GAF500
-20
GAF600
-20
GAF600
-25
Regulator: GAR200-06 GAR200
-08
GAR300
-08
GAR300
-10
GAR300
-15
GAR400
-10
GAR400
-15
GAR500
-20
GAR600
-20
GAR600
-25
Luricator GAL200-06 GAL200
-08
GAL300
-08
GAL300
-10
GAL300
-15
GAL400
-10
GAL400
-15
GAL500
-20
GAL600
-20
GAL600
-25

①PT thread, NPT thread and G thread are available.

Product Feature:

1.Oil dripping adopts gap seal structure, which makes the adjustment of oil supply more reliable.

2.Oil feed ring can only make one full turn. The quantity of oil supply, basically taking on linear distribution. The quantity of oil supply can be generally calculated according to the position of graduation ring.

3.Filling of oil while the lubricator is under pressure is made possible.

4.Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal.

5.Quick and reliable mounting clamps makes it convenient to install and use.

6.The performance of pressure adjustment is reliable with high precision.

7.The efficiency of eliminating moisture and solid grain is high.

8.Two drain types are available: manual drain+semi-auto drain and automatic drain.

9.Three bowl materials are available: PC, Metal and Nylon.

Order Code:

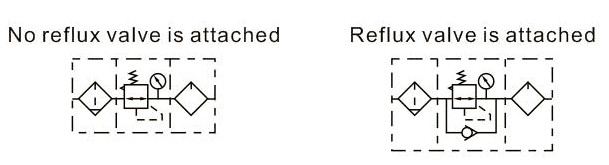

Symbol:
