Product Name:PCV Series AIRTAC Pilot No Return Valve Product Model:PCV06 PCV08 PCV10 PCV16 PCV06F PCV08F PCV10F PCV16F Valve Type:Pilot No Return Valve Brand:AiRTAC Fluid: Air
Model: | PCV06 | PCV08 | PCV10 | PCV16 | PCV06F | PCV08F | PCV10F | PCV16F |
Fluid: | Air(To be filtered by 40μm filter element) | |||||||
Operating Pressure Range: | 0.1~1.0MPa | |||||||
Proof Pressure: | 1.5MPa | |||||||
Temperature Range: | -20~70(℃) | |||||||
Operating Frequency: | 60(Cycle/Minute) | 40(Cycle/Minute) | 60(Cycle/Minute) | 40(Cycle/Minute) | ||||
Port Size: | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT1/8 | PT1/4 | PT3/8 | PT1/2 |
Pilot Port Size: | M5×0.8 | PT1/8 | PT1/4 | PT1/4 | Φ6 | Φ6 | Φ8 | Φ8 |

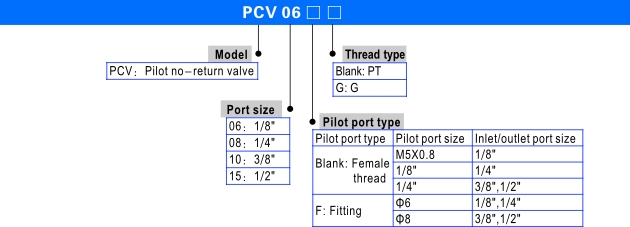

① PT thread, NPT thread and G thread are available.
1. Can be used for safety loop of pressure holding.
2. Can make cylinder momentary stop, accurate orientation.
3. Can be used special loop.
4. Fitting joint type is used for pilot port, which saved space and improve efficiency of installation.
