Original AirTAC GVF200-06 GVF200-08 GVF300-08 GVF300-10 GVF300-15 GVF Series Vacuum Filter
  • GVF
  • GVF-1

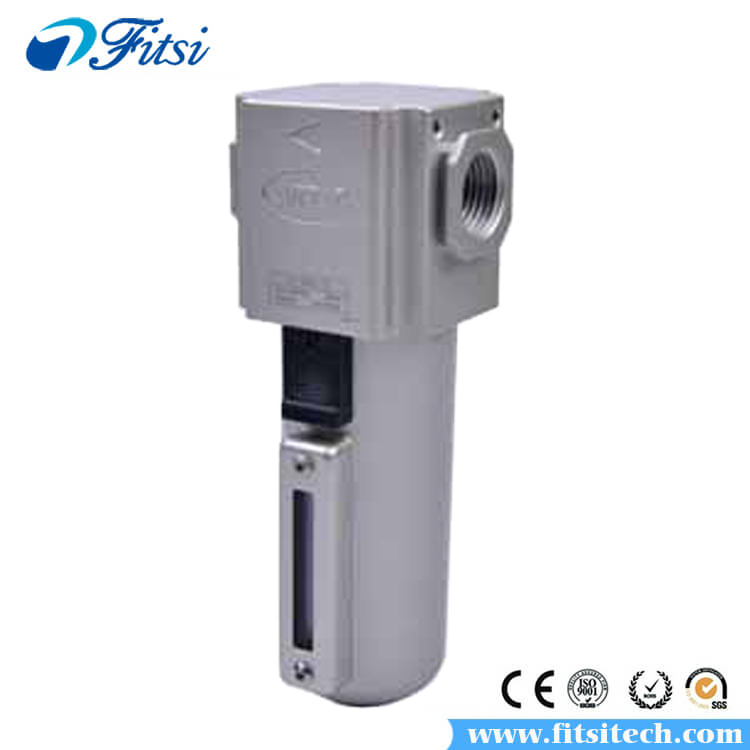

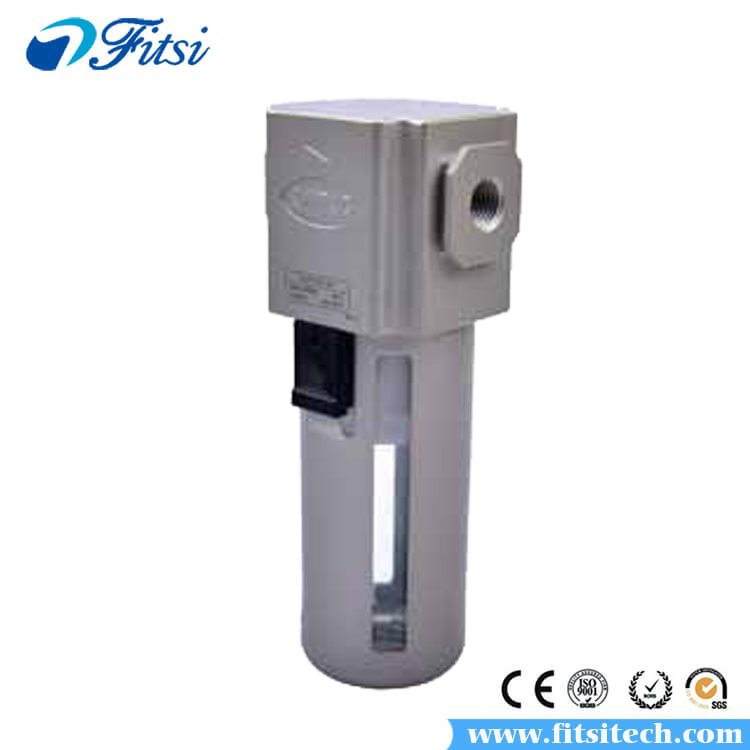

Original AirTAC GVF200-06 GVF200-08 GVF300-08 GVF300-10 GVF300-15 GVF Series Vacuum Filter

Product Name:GVF Series Vacuum Filter
Product Model:GVF200-06 GVF200-08 GVF300-08 GVF300-10 GVF300-15
Brand:AiRTAC
Fluid: Air
Pressure Range::-100~-0KPa
Max. Pressure: -0.5MPa
Temperature Range: -5~70℃



Download:
Specification:
Model:
GVF200-06 GVF200-08 GVF300-08 GVF300-10 GVF300-15
Fluid: Air
Port Size: PT1/8 PT1/4 PT1/4 PT3/8 PT1/2
Filtering Grate: 40μm or 5μm
Pressure range: -100~0kpa
Proof Pressure: 0.5MPa
Temperature Range: -5~70℃(Unfreeze)
Capacity of drain bowl: 25CC 45CC
Material of bowl: PC bowl、Nylon bowl、Metal bowl
Weight(Plastic bowl/Metal bowl): 220g/225g 210g/215g 370g/380g 360g/3755g 350g/360g
Flow capacity(L/min ARN): 5μm 80 100 150 200
40μm 100 160 200 280

①NPT thread and G thread are available.

Product Feature:

1. Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain.

2. It has low pressure loss, high efficiency in separating water and large drain bowl capacity;

3. Filtering grade includes 5um and 40um(Optional);

4. Three material of bowl are available: PC, Nylon and metal;

5. The bracket can be selected for installation.

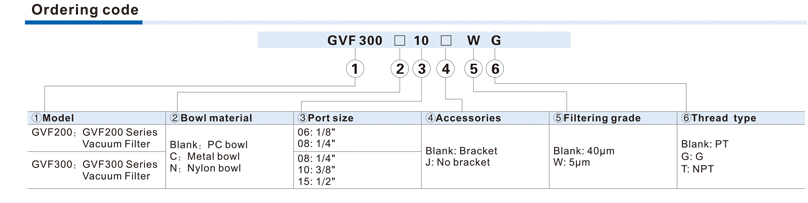

Order Code:


Symbol:
