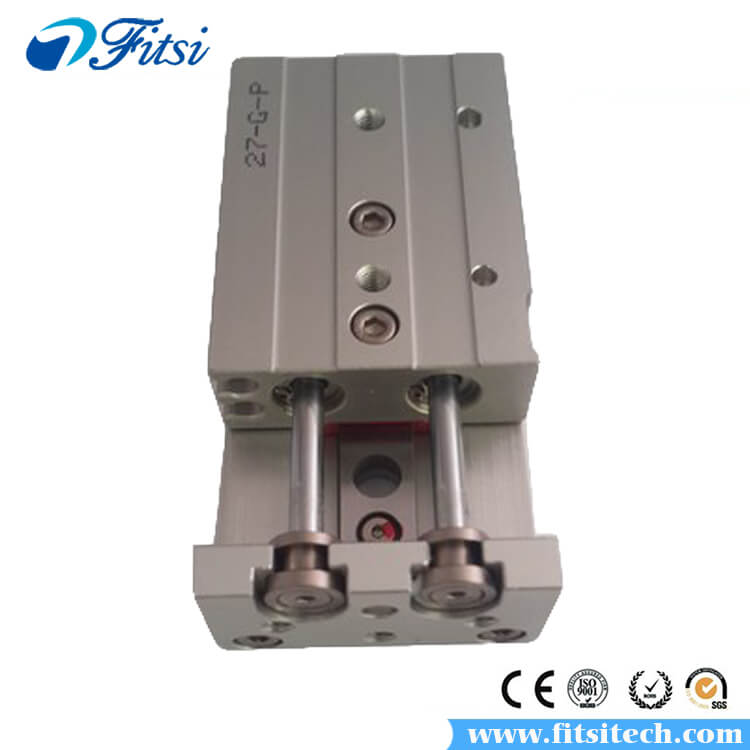

HLQ Series AirTAC Slide Table Pneumatic Cylinder HLQ25X75S HLQ25X100S HLQ25X125S HLQ25X150S Sliding Pneumatic Cylinder
  • HLQ8X30SASG
  • HLQ16X30SASG
  • HLQ20X30SASG
  • HLQ20X30SAST
  • HLQ25X30SASG
  • HLQ30X30SASG
HLQ Series AirTAC Slide Table Pneumatic Cylinder HLQ25X75S HLQ25X100S HLQ25X125S HLQ25X150S Sliding Pneumatic Cylinder

Product Name: HLQ HLQL Series Slider Table Cyclinder
Product Model: HLQ25X75S HLQ25X100S HLQ25X125S HLQ25X150S
Valve Type: Slider Table Cyclinder, Cyclinder
Brand: AirTAC
Fluid: Air
Acting Type: Double Acting



Download:
Specification:

Specification:

Bore size: 6 8 12 16 20 25
Guide Rail Width:
10 10 7 9 9 12
Number of Guide Rail: Single Guide Rail Double Guide Rail
Acting type: Double Acting
Fluid:
Air(to be filtered by 40μm filter element)
Operating Pressure:
0.15~0.7MPa(22~100psi)(1.5~7bar)
Proof pressure: 1.05MPa(150psi)(1.05bar)
Temperature(℃): -20~70
Speed rang (mm/s): 50~500
Stroke tolerance: (0~+1.0)
Cushion Type: Bumper(Both ends)、Shock Absorber
Sensor Switches: DS1-H□N、DS1-H□P
Port Size: M5X0.8
PT1/8

①Non-rotary accuracy of the cylinder fully retracted state, the cylinder fixed plate can be rotated angle;
②PT thread, NPT thread and G thread are available.


Stroke:

Bore size(mm) Standard Stroke(mm) Max Stroke(mm)
6

10 20 30 40 50 50
8 10 20 30 40 50 75 75
12 10 20 30 40 50 75 100 100
16 10 20 30 40 50 75 100 125 125
20 10 20 30 40 50 75 100 125 150 150
25 10 20 30 40 50 75 100 125 150 150


Product Feature:

HLQ Series.jpg

Installation & Usage:

HLQ Cyclinder.jpg

Order Code:
HLQ Series.jpg
Symbol:
HLQ6X10SA HLQ8X50SB HLQ12X75SB HLQ16X75SB HLQ20X50SB HLQ25X30SB
HLQ6X20SA HLQ8X75SA HLQ12X100SA HLQ16X100SA HLQ20X75SA HLQ25X40SA
HLQ6X30SA HLQ8X75SB HLQ12X100SB HLQ16X100SB HLQ20X75SB HLQ25X40SB
HLQ6X40SA HLQ12X10SA HLQ16X10SA HLQ16X125SA HLQ20X100SA HLQ25X50SA
HLQ6X50SA HLQ12X10SB HLQ16X10SB HLQ16X125SB HLQ20X100SB HLQ25X50SB
HLQ8X10SA HLQ12X20SA HLQ16X20SA HLQ20X10SA HLQ20X125SA HLQ25X75SA
HLQ8X10SB HLQ12X20SB HLQ16X20SB HLQ20X10SB HLQ20X125SB HLQ25X75SB
HLQ8X20SA HLQ12X30SA HLQ16X30SA HLQ20X20SA HLQ20X150SA HLQ25X100SA
HLQ8X20SB HLQ12X30SB HLQ16X30SB HLQ20X20SB HLQ20X150SB HLQ25X100SB
HLQ8X30SA HLQ12X40SA HLQ16X40SA HLQ20X30SA HLQ25X10SA HLQ25X125SA
HLQ8X30SB HLQ12X40SB HLQ16X40SB HLQ20X30SB HLQ25X10SB HLQ25X125SB
HLQ8X40SA HLQ12X50SA HLQ16X50SA HLQ20X40SA HLQ25X20SA HLQ25X150SA
HLQ8X40SB HLQ12X50SB HLQ16X50SB HLQ20X40SB HLQ25X20SB HLQ25X150SB
HLQ8X50SA HLQ12X75SA HLQ16X75SA HLQ20X50SA HLQ25X30SA
