HFKL10 HFKL16 HFKL20 HFKL25 HFSKL10 HFSKL16 HFSKL20 HFSKL25 HFTKL10 HFTKL16 HFTKL20 HFTKL25 HFKL Series Parallel with Guide/Longer Stroke/Ball Bearing Stype Air Gripper
  • HFKL20-1
  • HFKL20-2
  • HFKL20-4
HFKL10 HFKL16 HFKL20 HFKL25 HFSKL10 HFSKL16 HFSKL20 HFSKL25 HFTKL10 HFTKL16 HFTKL20 HFTKL25 HFKL Series Parallel with Guide/Longer Stroke/Ball Bearing Stype Air Gripper

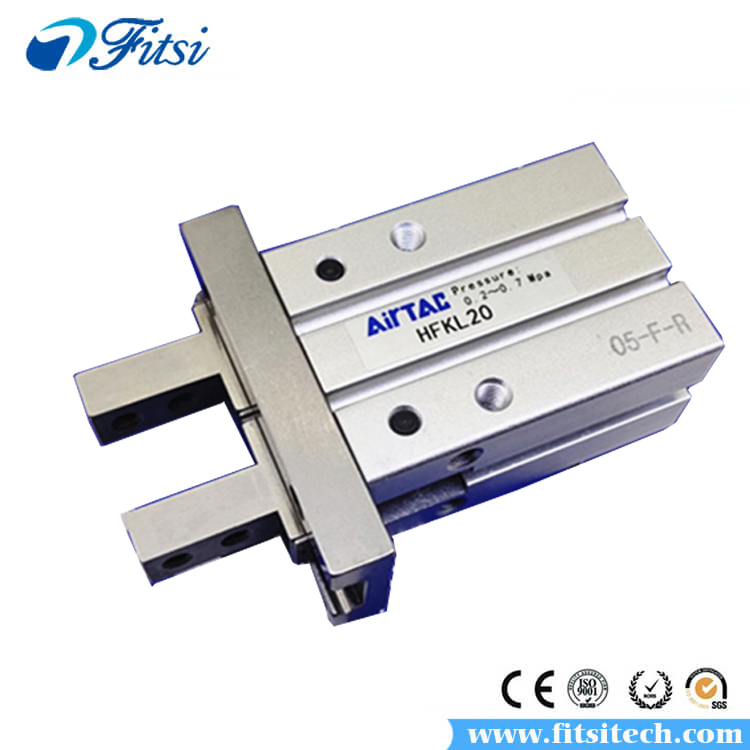

Product Name: HFKL Series Parallel with Guide/Longer Stroke/Ball Bearing Stype Air Gripper
Product Model: HFKL10 HFKL16 HFKL20 HFKL25 HFSKL10 HFSKL16 HFSKL20 HFSKL25 HFTKL10 HFTKL16 HFTKL20 HFTKL25
Valve Type: Air Gripper
Brand: AirTAC
Fluid: Air
Acting Type: Double Acting, Single Acting



Download:
Specification:

Specification:

Bore size: 10 16 20 25
Acting type: Double Acting、Single Acting
Fluid:
Air(to be filtered by 40μm filter element)
Operating Pressure: Double Acting: Φ10: 0.20~0.7MPa(28~100psi)(2.0~7bar)
Other: 0.15~0.7MPa(22~100psi)(1.5~7bar)
Single Acting Φ10: 0.35~0.7MPa(50~100psi)(3.5~7bar)
Other: 0.25~0.7MPa(36~100psi)(2.5~7bar)
Temperature(℃): -20~70
Lubrication: Not Required
Repeatability(mm):
±0.01
Max Frequency: 120(c.p.m)
Sensor Switches: DMSH(S)/CMSH DMSG(S)CMSG, MSH(S)/CMSH
Port Size: M3X0.5
M5X0.8

Product Feature:
1、Six kinds of bore size , three kinds of type and Seven kinds of finger type.

2、Integrated design of linear guide roller,  high rigidity and  high precision.

3、A positioning pin is attached to the bottom of the linear guide rail, which can prevent the deviation of the positioning rail and body.

4、The squareness magnetic switch slots convenient to install DS1-G\CS1-G type inducting switch.

The roundness magnetic switch slots convenient to install DS1-H type inducting switch.

Can be mounted from three directions:With mounting holes on the side and tail.

5、With positioning hole:

The positioning hole can improve the precision and the consistency of repeated dismounting and positioning.


Installation & Usage:
