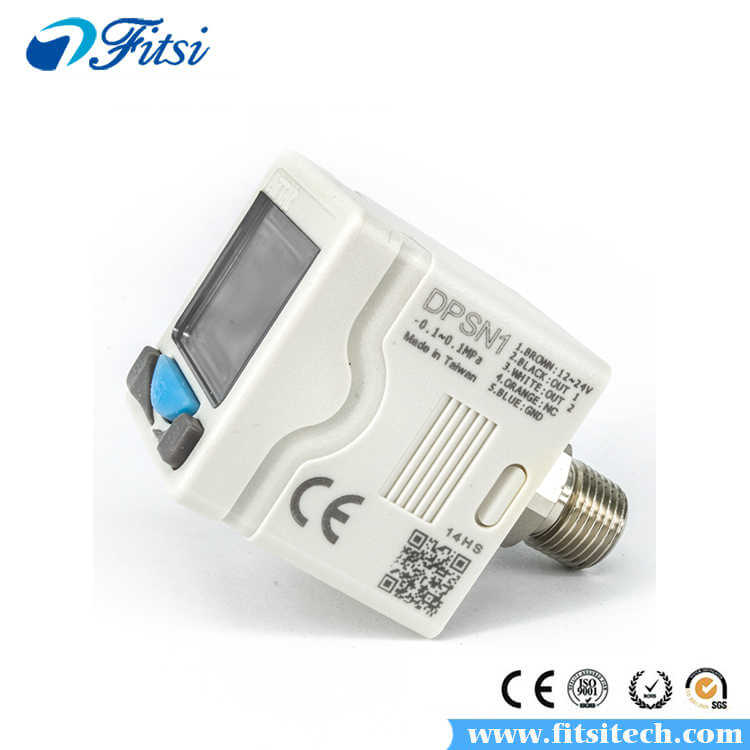

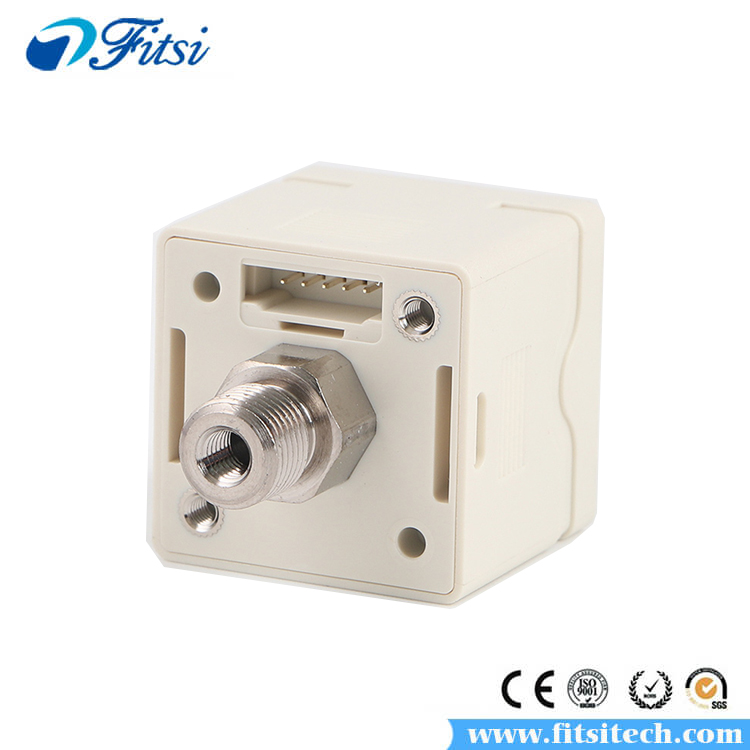

Product Name：DPS Series Digital Display Pressure Switch Product Model：DPSP1-01020 DPSP1-10020 DPSP1-01030 DPSP1-10030 DPSP1-01050 DPSP1-10050 Voltage：12~24 VDC Brand：AiRTAC Fluid： Non-corrosive gas Max Supply Pressure：DPSN1(P1)-01: 200kpa Proof Pressure： DPSN1(P1)-10: 1500kpa
| Input power | Voltage | 12~24 VDC ±10% Ripple(P-P)＜10% |
|
Pressure range |
Fluid | Non-corrosive gas |
|
Measurement range |
DPSN1(P1)-01:-100kpa~100kpa | |
| DPSN1(P1)-10:-100kpa~1000kpa | ||
|
Withstand pressure |
DPSN1(P1)-01: 200kpa | |
| DPSN1(P1)-10: 1500kpa | ||
| Measurement error | ±2%F.S.，±1 digit(Temperature:25±3℃) | |
| Repetitive accurac | ±0.2%F.S. | |
| Temperature error | ±3%F.S.(Base25℃，Range 0 to 50℃) | |
|
Display |
Type | Double row LCD display, 4-digit measurement, 3.5-digit setting |
| Color | 2-color LCD（Red/Green） | |
| Display period | 100ms、250ms、500ms、1000ms | |
|
Output |
Output group |
DPSN1：Built-in two sets of NPN output |
| DPSP1：Built-in two sets of PNP output | ||
| Transistor output | NPN：Maximum applied voltage 30V/100mA, Retained voltage＜1.5V | |
| PNP：Maximum applied voltage 30V/100mA, Retained voltage＜1.5V | ||
| Output delay time | 2ms、20ms、50ms、100ms、250ms、500ms、1000ms、2500ms、5000ms | |
|
Hysteresis |
DPSN1(P1)-01: 0.1、0.2、0.3、…0.8（kpa） | |
| DPSN1(P1)-10: 1、2、3、…8（kpa） | ||
| Output mode | Basic mode, Hysteresis mode, Window comparator mode | |
| Pressure Unit | DPSN1(P1)-01 | kpa、kgf/cm²、bar、psi、mmHg、inHg |
| DPSN1(P1)-10 | Mpa、kpa、kgf/cm²、bar、psi、mmHg、inHg | |
| Vibration resistance | 10 to 500Hz with 10mm Amplitude in X, Y, Z directions for 2hrs | |
| Impact resistance | Maximum 100m/s², X, Y, Z direction 3 times each | |
| Operating Temp. range | 0~50℃ | |
| Stored Temp. range | -20~65℃ | |
| Humidity. range | 35%~80% RH（No condensation） | |
1.Do not drop ˴ knock or apply excessive impact while handling. Otherwisecould cause damage and a malfunction.
2.The tensile strength of the cord is 60N. Applying a greater pulling force on it can cause a malfunction.
3.Do not exceed the screw-in torque of 7N.m when installing piping.Exceeding this value may cause malfunctioning of the sensor.
4.Do not use it with corrosive and/or flammable gases or liquids.
5.Please use it within rated pressure range.
6.Turn off the power before connecting the wires.
7.Don't use in an environment with spattering liquid of oil or solvent.
