Product Name：6HV Series Electrical Solenoid Valve Product Model：6HV0510 6HV0520 6HV0530 6HV110 6HV120 6HV130 Valve Type：Solenold Valve, Directional valve Brand：AIRTAC Fluid： Air Acting： Internal pilot
| Model: | 6HV0510 | 6HV0520 | 6HV0530 | 6HV110 | 6HV120 | 6HV130 |
| Port size: | In=Out=Exhaust=M5 | In=Out=Exhaust=M5(or=1/8") | ||||
| Orifice Size(Cv Valve): | 5.0mm²(0.28) |
4.5mm²(0.25) |
M5:0.28/06:0.58 | |||
| Max Frequency: | 5Cycle/Sec | 3Cycle/Sec | 5Cycle/Sec | 3Cycle/Sec | ||
| Fluid: | Air(to be filtered by 40μm filter element) | |||||
| Acting: | Internal pilot | |||||
| Operating Pressure: | 0.15~0.8MPa(21~114psi) | |||||
| Proof Pressure: | 1.2MPa(175psi) | |||||
| Temperature: | -20~70℃ | |||||
| Material of Body: | Aluminum Alloy | |||||
| Lubrication: | Not Required | |||||
| Exhaust type of pilot valve: |
Main valve and pilot valve concentrated exhaust |
|||||
① PT thread,NPT thread and G thread are available.
② Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
③ The maximum actuation frequency is the no-load state.
1.Electrical entry is terminal, horizontal and vertical insertion can freely switch.
2.Inner exhauststructure, which can collect pilot airflow, and then exhaust intensively from R,S port.
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.The solenoid valve and the DIN rail are connected by a push-pull type, which can be integrated into the valve group with multipe valve. it's convenient and flexible to disassemble and replace.
| Item: |
Specification |
|||
| Standard Voltage: | AC220V | AC110V | DC24V | DC12V |
| Scope of Voltage: | AC:+15%~-10% | DC:±10% | ||
| Power Consunmption: | 1.1VA |
0.9W |
||
| Protection: |
Dust-proof |
|||
| Temperature classification: |
F Class |
|||
| Electrical entry: |
Terminal |
|||
| Activating time: |
0.05Sec and Below |
|||

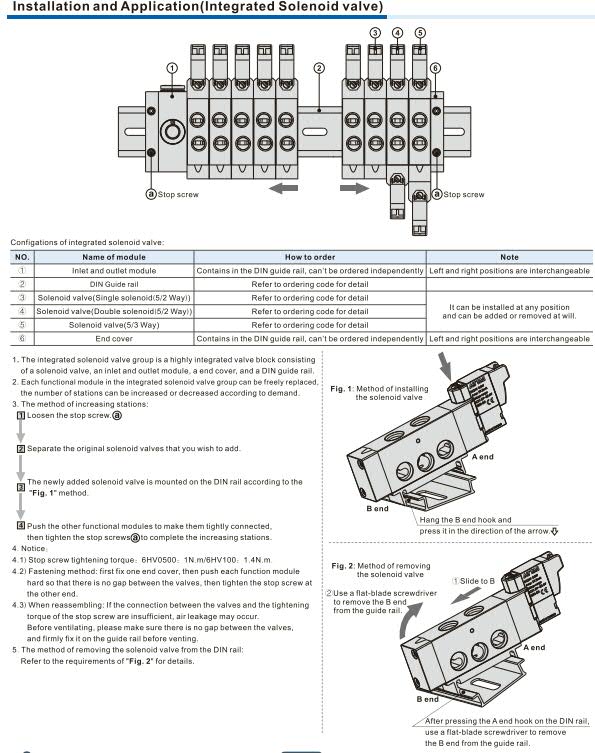

Installation & Usage:
