AirTAC Solenoid Valve 7V0510 7V0520 7V0530 7V110 7V120 7V130 7V210 7V220 7V230 7V Series Electrical Solenoid Valve
  • O1CN01ErHgL61IUPQHm7twF_!!3882630896
  • O1CN01OB34wq1IUPQI8yRcc_!!3882630896
  • 201803190114048663
  • 201803190114048824
  • 201803190114048511
AirTAC Solenoid Valve 7V0510 7V0520 7V0530 7V110 7V120 7V130 7V210 7V220 7V230 7V Series Electrical Solenoid Valve

Product Name:7V Series Pneumatic Solenoid Valve
Product Model:7V0510 7V0520 7V0530 7V110 7V120 7V130 7V210 7V220 7V230
Valve Type:Solenold Valve, Directional valve
Brand:AIRTAC
Fluid: Air
Acting: pilot



Download:
Specification:
Model: 7V0510 7V0520 7V0530 7V110 7V120 7V130
Port size:
Thread type: In=Out=Exhaust=M5 In=Out=Exhaust=1/8"
Tube type: Part A=Part B=∅4 Part A=Part B=∅4(or∅6 or∅8)
Orifice Size(Cv Valve): 5.0mm²(0.28) 4.5mm²(0.25) 9.5mm²(0.55) 8.0mm²(0.48)
Weight
30g 45g 50g 80g 90g 100g
Model: 7V210 7V220 7V230
Port size: Thread type: In=Out=1/4" Exhaust=1/8"
Tube type: Part A=Part B=∅8(or∅10)
Orifice Size(Cv Valve): 14.0mm²(0.83) 11.0mm²(0.61)
Weight 120g 135g
145g
Fluid: Air(to be filtered by 40μm filter element)
Acting: pilot
Operating Pressure: 7V0530/7V130/7V230 0.2~0.8MPa(29~114psi)
Others 0.15~0.8MPa(21~114psi)
Proof Pressure: 1.2MPa(175psi)
Temperature: -20~70
Material of Body: Aluminum Alloy
Lubrication: Not Required
Max Frequency: 5Cycle/Sec
3Cycle/Sec 5Cycle/Sec 3Cycle/Sec
Exhaust Type of pilot Valve: Main valve and pilot valve is centralized exhaust

① PT thread,NPT thread and G thread are available.
② Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
③ The maximum actuation frequency is the no-load state.

Product Feature:

1.Electrical entry is terminal, horizontal and vertical insertion can freely switch.

2.Inner exhauststructure, which can collect pilot airflow, and then exhaust intensively from R,S port.

3.Die-cast molding with aluminum alloy for body, the shape of cavity is reasinable, which can increase valve's flow.

4.Threaded type and quick connector type are optional, and can integrate manifold to form valve group to save space.


Installation & Usage:


2.

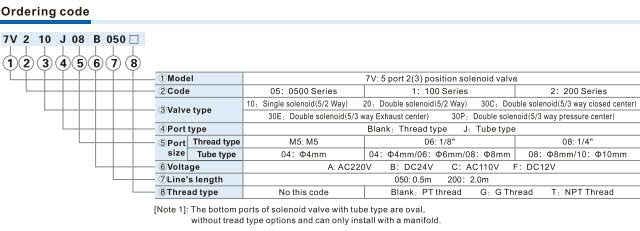

Order Code:


Symbol:


Contact us
E-mail:info@fitsitech.com
Tel:+86-19928764188
Add:Shangmei Times, 57 Longguan East Road, Tsinghua Community, Longhua Street, Longhua District, Shenzhen, China


Inquiry
