Product Name：ACJ Series Shock Absorber Product Model：ACJ1007 ACJ1210 ACJ1412 ACJ2020 ACJ2525 ACJ2550 ACJ2725 ACJ2750 ACJ3325 ACJ3350 ACJ3625 ACJ3650 ACJ4225 ACJ4250 ACJ4275 Brand：AIRTAC
| Model： | Stroke（mm） | Max Energy Absorbed（Nm） | Max Energy Absorbed▪hour（Nm/h） | Max effective Mass（kg） |
Max Impact Speed（m/s） |
Weight（g） |
| ACJ1007 | 7 | 6 | 14500 | 50 | 4 | 28 |
| ACJ1210 | 10 | 10 | 30000 | 80 | 4 | 43 |
| ACJ1412 | 12 | 20 | 36000 | 160 | 4 | 75 |
| ACJ2020 | 20 | 60 | 50000 | 960 | 4 | 189 |
| ACJ2525 | 25 | 100 | 75000 | 1600 | 4 | 308 |
| ACJ2550 | 50 | 150 | 85000 | 2400 | 4 | 395 |
| ACJ2725 | 25 | 140 | 85000 | 2240 | 4 | 396 |
| ACJ2750 | 50 | 250 | 95000 | 4000 | 4 | 510 |
| ACJ3325 | 25 | 180 | 100000 | 2880 | 4 | 540 |
| ACJ3350 | 50 | 300 | 110000 | 4800 | 4 | 800 |
| ACJ3625 | 25 | 220 | 125000 | 2500 | 4 | 750 |
| ACJ3650 | 50 | 350 | 130000 | 5600 | 4 | 950 |
| ACJ4225 | 25 | 350 | 150000 | 5600 | 4 | 1150 |
| ACJ4250 | 50 | 700 | 180000 | 11200 | 4 | 1420 |
| ACJ4275 | 75 | 1050 | 210000 | 16800 | 4 | 1720 |
1.Excellent and stable deceleration and shock absorbing; if impacted by load, the resistance will automatically adjust.
2.Outer body of integrated structure is treated by QPQ, which has optimum corrosion and wear resistance and can withstand high pressure; it is easy to install and adjust for all threaded outer body which has good heat dissipation.
3.With high hardness stainless steel shaft, the shock absorber has better impact and corrosion resistance, and it can work under adverse conditions.
4.Special oiling process leads to stable shock absorbing.
5.Compact structure and high max. absorbed energy.
6. We use Special lubricants as buffer medium, which adapts to wide temperature range and ensures stable cushioning.

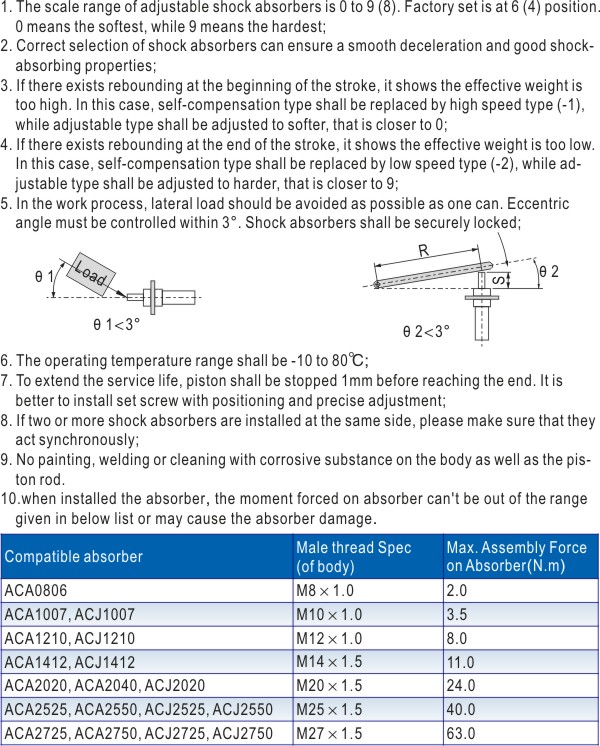

Installation & Usage:
