Original AirTAC RMS Series Double Acting Rodless Pneumatic Cylinder RMS16X50 RMS16X100 RMS16X150 RMS16X200 RMS16X250 Rodless Cyclinder

Product Name: RMS RMSF MSFP Series Rodless Cyclinder
Product Model: RMS16X50 RMS16X100 RMS16X150 RMS16X200 RMS16X250
Valve Type: Rodless Cyclinder, Cyclinder
Brand: AirTAC
Fluid: Air
Acting Type: Double Acting



Download:
Specification:

Specification:

Series Name:
RMS、RMSL Series RMSP Series
Bore size: 16 20 25 32 40 16 20 32
Acting type: Double Acting
Fluid:
Air(to be filtered by 40μm filter element)
Operating Pressure:
0.15~0.7MPa(22~100psi)(1.5~7bar)
Proof pressure: 1.0MPa(145psi)(10.0bar)
Temperature(℃): -20~70
Speed rang (mm/s): 50~400
Stroke tolerance: 0~250(0~+1.0)   251~1000(0~+1.4)   1001(0~+1.8)
Cushion Type: Variable Cushion+Fixed Cushion
140
200 360 550 850 140 200 550
Port Size: M5X0.8
PT1/8
PT1/4 M5X0.8 PT1/8

PT thread, NPT thread and G thread are available.

Stroke:

Bore size(mm) Standard Stroke(mm) Max Stroke(mm)
16

50 100 150 200 250 300 350 400 450 500 1500
20 50 100 150 200 250 300 350 400 450 500 600 700 800 900 1000 2000
25 50 100 150 200 250 300 350 400 450 500 600 700 800 900 1000 2500
32 50 100 150 200 250 300 350 400 450 500 600 700 800 900 1000 3000
40 50 100 150 200 250 300 350 400 450 500 600 700 800 900 1000 3000


Product Feature:

1. This magnetic cylinder is basically a pneumatic rodless cylinder featuring a mobile piston fitted with annular magnets. The mobile carriage is also equipped with magnets to provide magnetic coupling (carriage/piston). The carriage slide freely along the main tube.

2. It is dust-proof as the isolation between the carriage and piston.

3. It is compact in space.

4. The non adjustable rubber bumpers and the adjustable pneumatic cushioning on both ends of the cylinder ensure the smooth action.


Installation & Usage:

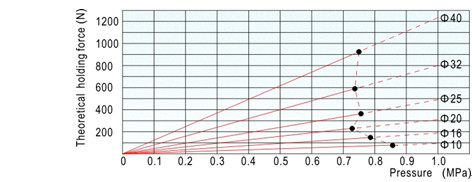

1.The maxi load to move must be less than the theoretical holding force.

2.Horizontal mounting, the permissible radial load must be lower than the figures in the chart below.
RMT 2.jpg

3.Vertical mounting, the allowable direction moment must be lower than the figures in the chart below, the dimensions of geometrical can be determined by the relation graph between loading and stroke.
RMT 3.jpg

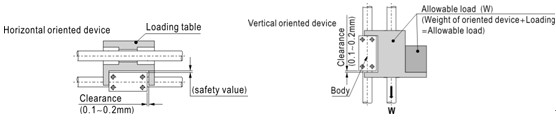

Note) Loading should be used with oriented device, example:
RMT Series.jpg

4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of impurities into the cylinder.

5.The medium used by cylinder shall be filtered to 40μm or below.

6.If the cylinder is dismantled and stored for a long time, pay attention to conduct anti-rust treatment to the surface. Anti-dust jam cap shall be added in air inlet and outlet ports.

Order Code:
RMS Series.jpg
Symbol:


RMS16X50LB RMS20X400LB RMSP16X100LB RMSP20X500LB RMSL20X300LB
RMS16X100LB RMS20X500LB RMSP16X500LB RMSL16X50LB RMSL20X400LB
RMS16X500LB RMS25X150LB RMSP20X300LB RMSL16X100LB RMSL20X500LB
RMS20X300LB RMSP16X50LB RMSP20X400LB RMSL16X500LB RMSL25X150LB
