Product Name: MK Series Multi-mount Cylinder
Product Model: MK6X5 MK6X10 MK6X15 MK6X20 MK6X25 MK6X30 MK6X35 MK10X5 MK10X10 MK10X15 MK10X20 MK10X25 MK10X30 MK10X35
Valve Type: Multi-mount Cylinder, Air Cylinder
Brand: AirTAC
Fluid: Air
Acting: Double Acting
Cushion Type: Bumper



Download:
Specification:

Specification:

Bore size: 6 10 16 20 25 32
Acting type: MK/MKD/MKJ Double Acting
MSK/MTK Single Acting Push、Single Acting Pull
Fluid:
Air(to be filtered by 40μm filter element)
Operating Pressure: Double Acting: 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Single Acting: 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure: 1.5MPa(215psi)
Temperature(℃): -20~80
Speed rang (mm/s): Double Acting: 30~500      Single Acting:50~500
Stroke tolerance: (0~+1.0)
Cushion Type: Bumper
Port Size: M5X0.8 PT1/8

① PT thread, NPT thread and G thread are available.
Stroke:

Bore size(mm) Standard Stroke(mm) Max Stroke(mm) Allow Stroke(mm)
6

Double Acting:  5 10 15 20 25 30 35 35 40
Single Acting: 5 10 15 20 20
-
10 Double Acting: 5 10 15 20 25 30 35 35 40
Single Acting: 5 10 15 20 20 -
16
Double Acting:  5 10 15 20 25 30 40 50 50 70
Single Acting: 5 10 15 20 20 -
20 Double Acting:  5 10 15 20 25 30 40 50 60 60 80
Single Acting: 5 10 15 20 20 -
25 Double Acting:  5 10 15 20 25 30 40 50 60 60 80
Single Acting: 5 10 15 20 20 -
32 Double Acting:  5 10 15 20 25 30 40 50 60 60 80
Single Acting: 5 10 15 20 20
-

① other special itinerary please contact with the company;

② The max range of non-standard travel range of more than a standard stroke restructuring, its dimensions for the previous standard stroke cylinder dimensions. Such as the stroke of 23 non-standard stroke cylinder is a standard stroke of 25 standard cylinder restructuring, its dimensions and the same.


Product Feature:

1.Manufactured by our enterprise.

2.There are several ways to fix the cylinder and it is convenient to install and use.

3.Several cylinders can be assembled together to  effectively save the installation space.

4.The guide precision of piston rod is high and no additional lubricant is needed.

5.Cylinders of various specifications are optional.

6.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃(Option).


Installation & Usage:

1. When load changes in the work, the cylinder with abundant output capacity shall be ed.

2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.

3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.

4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.

5.The medium used by cylinder shall be filtered to 40μm or below.

6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.

7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.

8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.

9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the  surface. Anti-dust caps shall be added in air inlet and outlet ports.

Order Code:
MK Series.jpg

More product models can refer to the following:
MK6X5S
MK6X10S MK6X15S MK6X20S MK6X25S MK6X30S MK6X35S MK10X5S
MK10X10S MK10X15S
MK10X20S MK10X25S MK10X30S MK10X35S MK16X5S
MK16X10S MK16X15S MK16X20S MK16X25S MK16X30S
MK16X40S MK16X50S MK20X5S
MK20X10S MK20X15S MK20X20S MK20X25S MK20X30S MK20X40S MK20X50S
MK20X60S MK25X10S MK25X15S MK25X20S MK25X25S MK25X30S MK25X40S MK25X50S MK25X60S MK32X10S
MK32X15S MK32X20S MK32X25S MK32X30S MK32X40S MK32X50S MK32X60S
MKD6X5S
MKD6X10S MKD6X15S MKD6X20S MKD6X25S MKD6X30S MKD6X35S MKD10X5S
MKD10X10S MKD10X15S
MKD10X20S MKD10X25S MKD10X30S MKD10X35S MKD16X5S
MKD16X10S MKD16X15S MKD16X20S MKD16X25S MKD16X30S
MKD16X40S MKD16X50S MKD20X5S
MKD20X10S MKD20X15S MKD20X20S MKD20X25S MKD20X30S MKD20X40S MKD20X50S
MKD20X60S MKD25X10S MKD25X15S MKD25X20S MKD25X25S MKD25X30S MKD25X40S MKD25X50S MKD25X60S MKD32X10S
MKD32X15S MKD32X20S MKD32X25S MKD32X30S MKD32X40S MKD32X50S MKD32X60S
MKJ6X5S
MKJ6X10S MKJ6X15S MKJ6X20S MKJ6X25S MKJ6X30S MKJ6X35S MKJ10X5S
MKJ10X10S MKJ10X15S
MKJ10X20S MKJ10X25S MKJ10X30S MKJ10X35S MKJ16X5S
MKJ16X10S MKJ16X15S MKJ16X20S MKJ16X25S MKJ16X30S
MKJ16X40S MKJ16X50S MKJ20X5S
MKJ20X10S MKJ20X15S MKJ20X20S MKJ20X25S MKJ20X30S MKJ20X40S MKJ20X50S
MKJ20X60S MKJ25X10S MKJ25X15S MKJ25X20S MKJ25X25S MKJ25X30S MKJ25X40S MKJ25X50S MKJ25X60S MKJ32X10S
MKJ32X15S MKJ32X20S MKJ32X25S MKJ32X30S MKJ32X40S MKJ32X50S MKJ32X60S

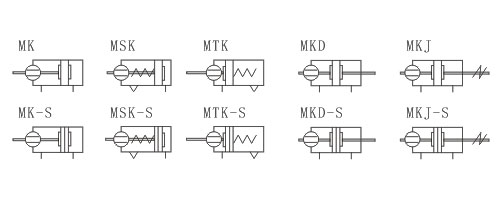

Symbol:

MK Series.jpg

MK6X5 MK10X20 MK16X45 MK20X30 MK25X30 MK32X20
MK6X10 MK10X25 MK16X50 MK20X40 MK25X35 MK32X25
MK6X15 MK10X30 MK16X60 MK20X50 MK25X40 MK32X30
MK6X20 MK10X35 MK16X5S MK20X60 MK25X50 MK32X35
MK6X25 MK10X5S MK16X10S MK20X5S MK25X60 MK32X40
MK6X30 MK10X10S MK16X15S MK20X10S MK25X80 MK32X50
MK6X35 MK10X15S MK16X20S MK20X15S MK25X5S MK32X60
MK6X40 MK10X20S MK16X25S MK20X20S MK25X10S MK32X80
MK6X5S MK10X25S MK16X30S MK20X25S MK25X15S MK32X5S
MK6X10S MK10X30S MK16X35S MK20X30S MK25X20S MK32X10S
MK6X15S MK10X35S MK16X40S MK20X35S MK25X25S MK32X15S
MK6X20S MK10X40S MK16X45S MK20X40S MK25X30S MK32X20S
MK6X25S MK16X5 MK16X50S MK20X45S MK25X35S MK32X25S
MK6X30S MK16X10 MK16X60S MK20X50S MK25X40S MK32X30S
MK6X35S MK16X15 MK20X5 MK20X60S MK25X50S MK32X35S
MK6X40S MK16X20 MK20X10 MK20X70S MK25X70S MK32X40S
MK10X5 MK16X25 MK20X15 MK25X10 MK32X5 MK32X50S
MK10X10 MK16X30 MK20X20 MK25X20 MK32X10 MK32X60S
MK10X15 MK16X40 MK20X25 MK25X25 MK32X15 MK32X70S
