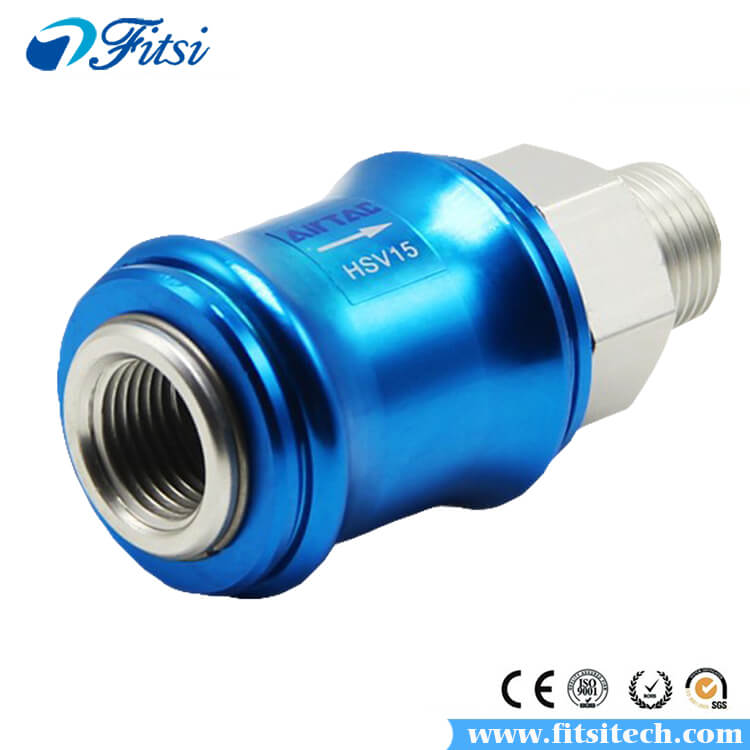

AirTAC Thread Silver Tone Blue Hand Operated Slide Valve HSV06 HSV08 HSV10 HSV15 HSV20 HSV25

Product Name:HSV Series Pneumatic Solenoid Valve
Product Model:HSV06 HSV08 HSV10 HSV15 HSV20 HSV25
Valve Type:Solenold Valve, Manual Hand Pull Valve
Brand:AirTAC
Fluid: Air
Position & Way Number:3 Port 2 Position
Acting: Manual control direct acting type



Download:
Specification:
Model: HSV06 HSV08 HSV10 HSV15 HSV20 HSV25
Fluid: Air(to be filtered by 40μm filter element)
Acting: Manual control direct acting type
Port Size: PT1/8 PT1/4 PT3/8 PT1/2 PT3/4 PT1
Orifice Size: 23.0mm²(Cv=1.28) 40.0mm²(Cv=2.20) 62.0mm²(Cv=3.50) 140.0mm²(Cv=7.80) 250.0mm²(Cv=13.80) 392.0mm²(Cv=21.78)
Valve Type: 3 Port 2 Position
Operating Pressure: 0~1.0MPa(0~145psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70
Material of Body: Aluminum Alloy

① PT thread,NPT thread and G thread are available.

Product Feature:

1. There are several ways of internal and external thread connection, suitable for the application in different pipeline systems.

2. The direction-change slides smoothly and has good hand feeling.

3. There is large effective circulating area.

4. The valve spool surface is treated with acid washing passivation, and the surface of valve body is oxidized to keep the color for a long time.


Installation & Usage:

1.Before installing, be sure the valve hasn't been damaged via transportation.

2.It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3.Please notice whether the installation condition accords with technical requirements (such as“act-uation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4.Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.

5.Take measure to avoid vibration and frozen.

6.To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.


Order Code:

HSV Series.jpg


Symbol:
