Product Name: HFR Series Air Finger Cylinder Product Model: HFR10 HFR16 HFR20 HFR25 HFR32 Valve Type: Air Finger, Air Gripper Brand: AirTAC Fluid: Air Acting Type: Double Acting
Specification：
| Bore size: | 10 | 16 | 20 | 25 | 32 |
| Acting type: | Double Acting | ||||
|
Fluid: |
Air(to be filtered by 40μm filter element) | ||||
| Operating Pressure: | 0.15~0.7MPa(21~100psi)(1.5~7.0bar) | ||||
| Temperature（℃）: | -10~70 | ||||
| Lubrication: | Cylinder:Not Required Gripper Jaws:Lubricate Grease | ||||
| Cushion Type: | Bumper | ||||
|
Max Gripping Length(mm): |
0.16N.m | 0.55N.m | 1.10N.m | 2.30N.m | 5.00N.m |
| Max Frequency: | 60(c.p.m) | ||||
| Open or Close Angle: | Open:-2°~-5° Close:180°±2° | ||||
| Sensor Switches: | DS1-H | ||||
| Port Size: | M5X0.8 | ||||
1.open/close type, simplify the gripping action.
2.A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
3.Dust proof is designed in the finger part, which is applicable to special working environment.
4.All series are all attached with magnet.
5.Many mounting types to be choosed.

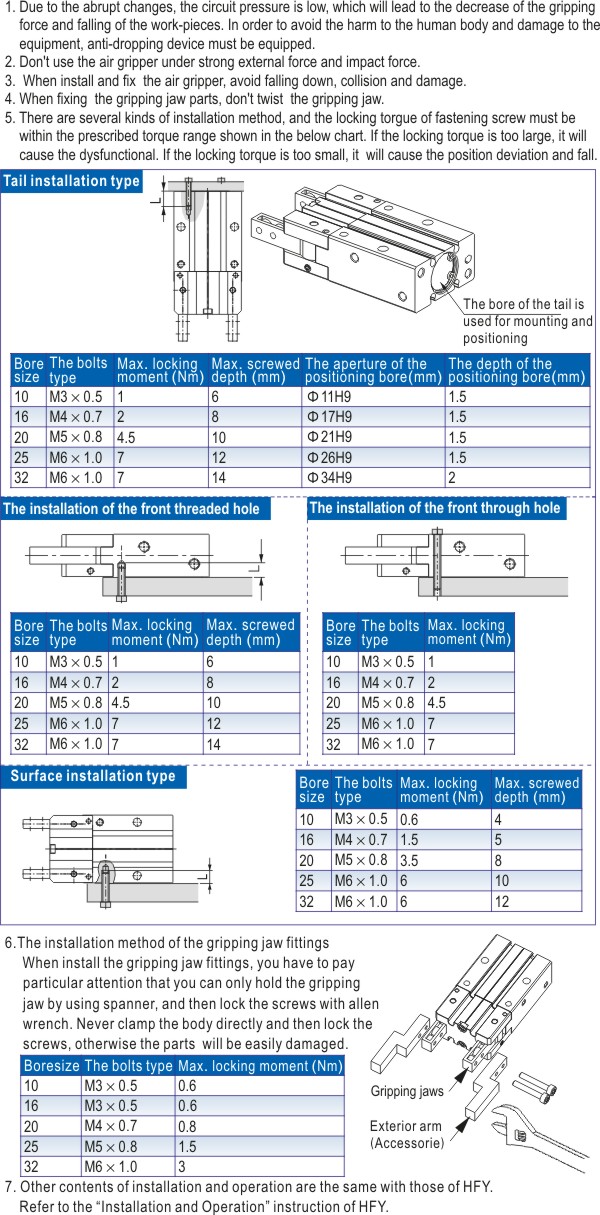

Installation & Usage:

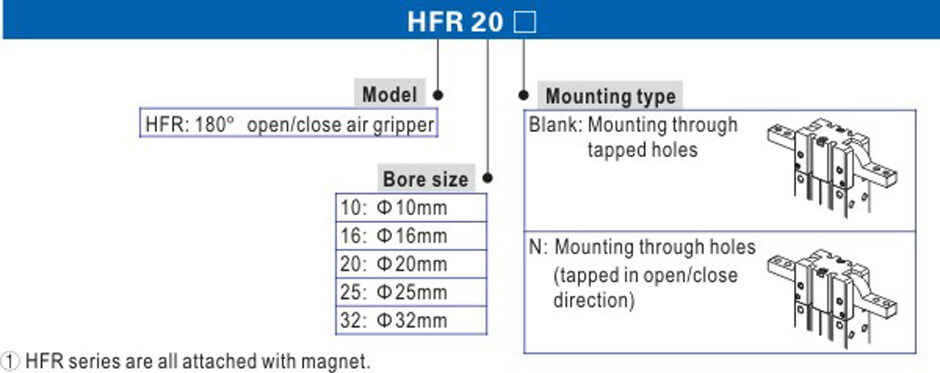

| HFR-10 | HFR-25 | HFR-16-N |
| HFR-16 | HFR-32 | HFR-25-N |
| HFR-20 | HFR-10-N | HFR-32-N |
