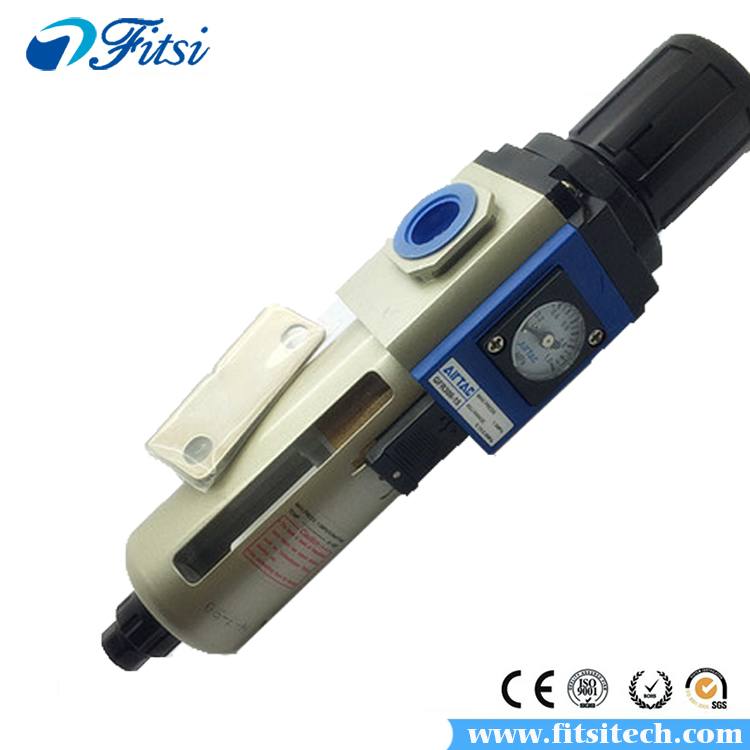

  • GFC200-06-1
  • GFR600-20-F1
  • GFR300-15-F1
  • GFR200-06-F1
  • GFR200-08-F1
  • GFR300-08-F1
GFR200-06 GFR200-08 GFR300-08 GFR300-10 GFR300-15 GFR400-10 GFR400-15 GFR600-20 GFR600-25 GFR Series Air Control Preparation Unit

Product Name:GFR Series Air Control Preparation Unit
Product Model:GFR200-06 GFR200-08 GFR300-08 GFR300-10 GFR300-15 GFR400-10 GFR400-15 GFR600-20 GFR600-25
Filtering Grade:40μm or 5μm
Brand:AiRTAC
Fluid: Air
Max Supply Pressure:1.0MPa(145psi)
Proof Pressure: 1.5MPa(215psi)



Download:
Specification:
Model:
GFR200-06 GFR200-08 GFR300-08 GFR300-10 GFR300-15 GFR400-10 GFR400-15 GFR600-20 GFR600-25
Fluid: Air
Port Size: PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT3/8 PT1/2 PT3/4 PT1
Filtering Grade: 40μm or 5μm
Pressure Range: Semi-auto and automatic drain:0.15~0.9MPa(20~130psi); Manual drain:0.05~0.9MPa(7~130psi)
Max Pressure: 1.0MPa(145psi)
Proof Pressure: 1.5MPa(215psi)
Temperature Range: -5~70℃
Capacity of Drain Bowl: 10CC 40CC 80CC 230CC
Weight: 220g 500g 1030g 2400g

①PT thread, NPT thread and G thread are available.

Product Feature:

1.Embedded square pressure gauge is used to save installation space. (External circular pressure gauge is also optional).

2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.Balanced design is adopted for the pressure adjustment mechanism.

4.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

5.Unique diversion structure spins the air flowing through to effectively sparate the liquid from the air and reliabily filter the solid grain.

6.The filtering grade includes 5μm and 40μm (optional).

7.Three drain types are available: manual drain, semiauto drain and automatic drain.

8.The bracket can be ed for installation.


Installation & Usage:

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice “→” direction) and thread type are correct.

3.Please notice whether installation condition accords with technical requirements (such as “working  pressure” and “applied temperature range”);

4.Avoid usage in an environment that exposes the filter and lubricator bowl through contact with Chlorine, solvent, aromatic essence, acid and alkali to avoid damage to the Filter and Lubricator bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.

6.Keep the dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.
