AirTAC ACK Series Large Bore Hydraulic Lubrication Air Cylinder Pneumatic Twist Clamp Cylinder ACKL25X90 ACKL32X90 ACKL40X90 ACKL50X90 ACKL63X90

Product Name: ACK Series Twist Clamp Cylinder
Product Model: ACKL25X90 ACKL32X90 ACKL40X90 ACKL50X90 ACKL63X90
Valve Type: Air Cylinder, Twist Clamp Cylinder
Brand: AirTAC
Fluid: Air
Acting Type: Double Acting



Download:
Specification:

Specification:

Bore Size(mm):
25 32 40 50 63
ActingType:
Double Acting
Fluid:
Air(to be filtered by 40μm filter element)
Operating Pressure: 1.5MPa(215psi)
Proof Pressure: 0.15~1.0MPa(22~145psi)
Temperature(℃): -20~80
Speed Range(mm/s)): 50~200
Stroke Tolerance: ±1.5°
Rotary angle Tolerance: (0~+1.0)
Cushion Type:
Port size: M5x0.8 PT1/8
①If there is no buffering device,exhaust throttle shall be added to achieve buffering effect;
②PT thread、NPT and G thread are available.
Product Feature:

1.The material of seals guarantees the reliable performance of the cylinder that is used under various conditions.

2.Three-slot guide structure leads to high guide precision.

3.There are single and double side clamping fingers can be ed (90°).

4.Levorotatory and dextrorotary are available; 90°and 180°.

5.The material of piston rod is made from special alloy steel, which has longer life after heat treatment.

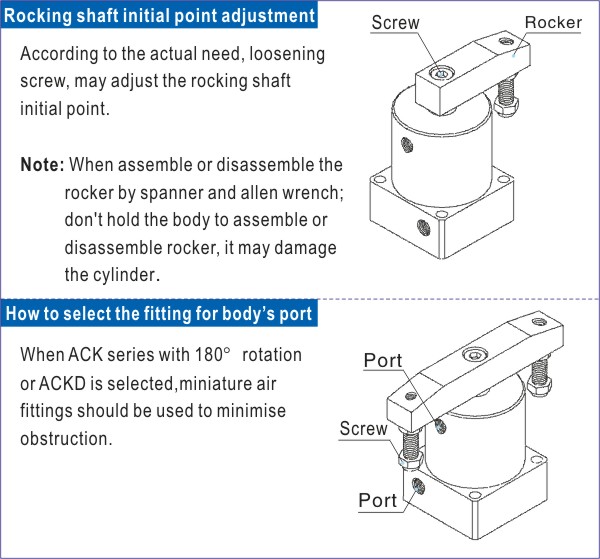

Installation & Usage:
Order Code:
ACK Series.jpg
Symbol:
