AirTAC 3 Position 5 Way Pneumatic Solenoid Air Valve 4V330C-10 4V330E-10 4V330P-10

Product Name:4V300 Series Pneumatic Solenoid Valve
Product Model:4V330C-10 4V330E-10 4V330P-10
Valve Type:Solenold Valve, Directional valve
Fluid: Air
Position & Way Number:5 Port 3 Position
Acting: Internal pilot or external pilot

4V330C-08 4V330E-08 4V330P-08
Fluid: Air(to be filtered by 40μm filter element)
Acting: Internal pilot or external pilot
Port Size: In=Out=Exhaust=1/4"
Orifice Size: 18.0mm²(Cv=1.00)
Valve Type: 5 Port 3 Position
Operating Pressure: 0.15~0.8MPa(21~114psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70
Material of Body: Aluminum Alloy
Lubrication: Not Required
Max Frequency: 3 Cycle/Sec
Weight: 450g
Standard Voltage:
Scope of Voltage: AC:±15% DC:±10%
Power Consumption: AC:3.5VA  DC:3.0W
Protection: IP65(DIN40050)
Temperature Classification: B Class
Electrical Entry: Termina,Grommet
Activating Time: 0.05 Sec and Below

① PT thread,NPT thread and G thread are available.
② Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
③ The maximum actuation frequency is the no-load state.

Product Feature:

1.Pilot-oriented mode:Internal pilot or external pilot.

2.Structure in sliding column mode: good tightness and sensitive reaction.

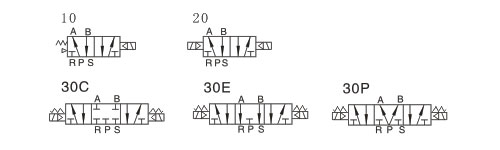

3.Three position solenoid valves have three kinds of central function for your choice.

4.Double control solenoid valves have memory function.

5.Internal hole adopts special processing technology which has little attrition friction,

low start pressure and long service life.

6.No need to add oil for lubrication.

7.It is available to form integrated valve group with the base to save installation space.

8.Affiliated manual devices are equipped to facilitate installation and debugging.

9.Several standard voltage grades are optional.

Order Code:
