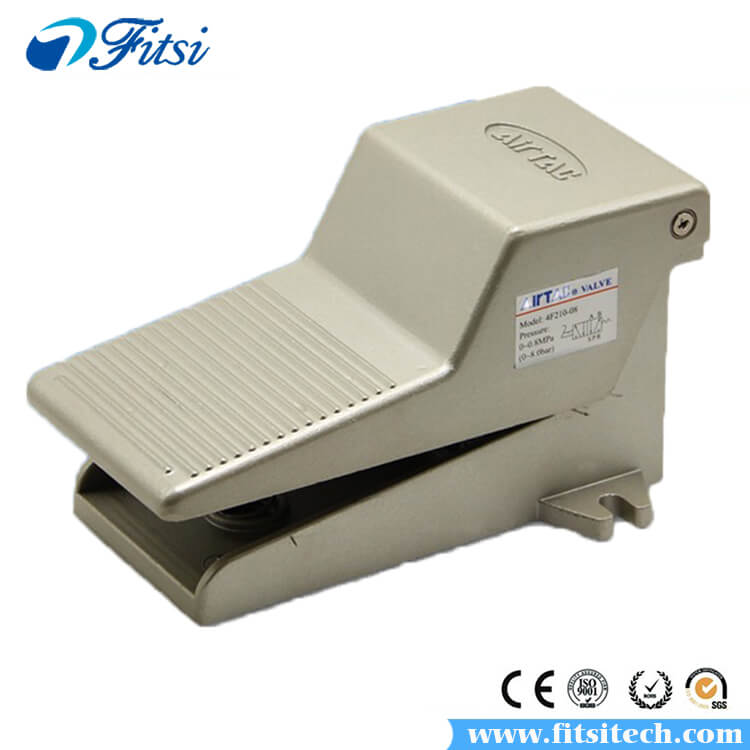

AirTAC 2 Position 3 Way 4F Series 4F210-08 4F210-08L 4F210-08F 4F210-08LF Momentary Foot Pedal Operated Valve Air Switch Valve

Product Name: 4F Series Foot Valve
Product Model: 4F210-08 4F210-08L 4F210-08F 4F210-08LF
Valve Type: Solenold Valve, Foot Valve
Brand: AirTAC
Fluid: Air
Position & Way Number: 5 Port 2 Position
Acting: Acting type Controlled by foot



Download:
Specification:
Model:
4F210-08 4F210-08L 4F210-08F 4F210-08LF
Fluid: Air(to be filtered by 40μm filter element)
Acting: Acting type Controlled by foot
Port Size: PT1/4
Valve Type: 5 Port 2 Position
Operating Pressure: 0~0.8MPa(0~114psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70
Material of Body: Aluminum Alloy
Lubrication: Not Required

① PT thread, NPT thread and G thread are available.

Product Feature:

1.It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

2.If the duration of direction-change is long, the valves with lock may be ed.

3.The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact.

4.Plastic guard with high strength may be ed.

Installation & Usage:

1.Check whether the components have been damaged during transportation before installing and using.

2.It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3.Please notice whether installation condition accords with technical requirements (such as “working  pressure”and“applied temperature range”);

4.Take measure to avoid vibration and frozen.

5.Before using the fittings and tubes make sure they are clean. When connecting tofittings, be sure the PTFE Thread Seal Tape is used correctly.

6.Keep the dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.


Order Code:
Symbol:
