Pneumatic Control Valve
AIRTAC 4A410-15 4A420-15 4A430C-15 4A430E-15 4A430P-15 4A400 Series Pneumatic Solenoid Control Valve

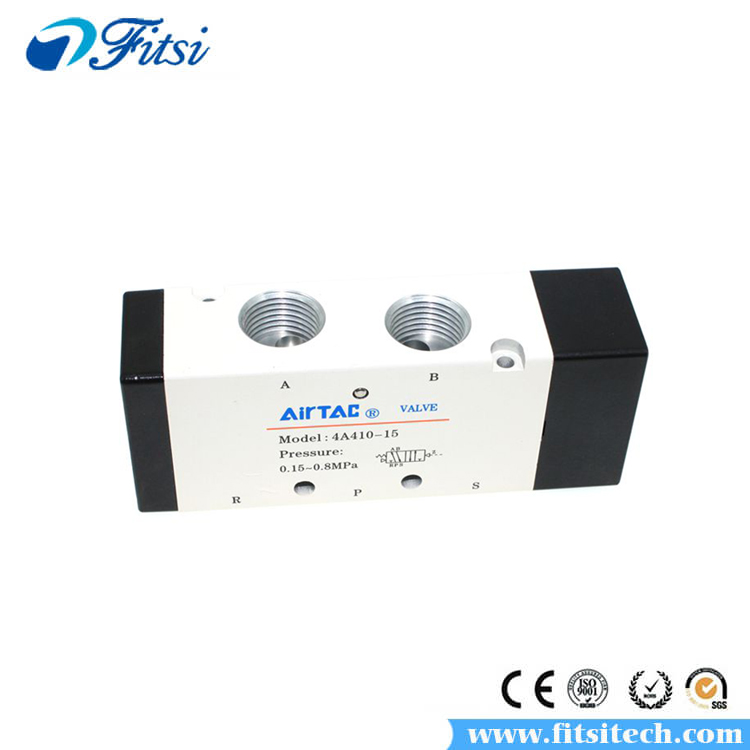

  • 4A410-15

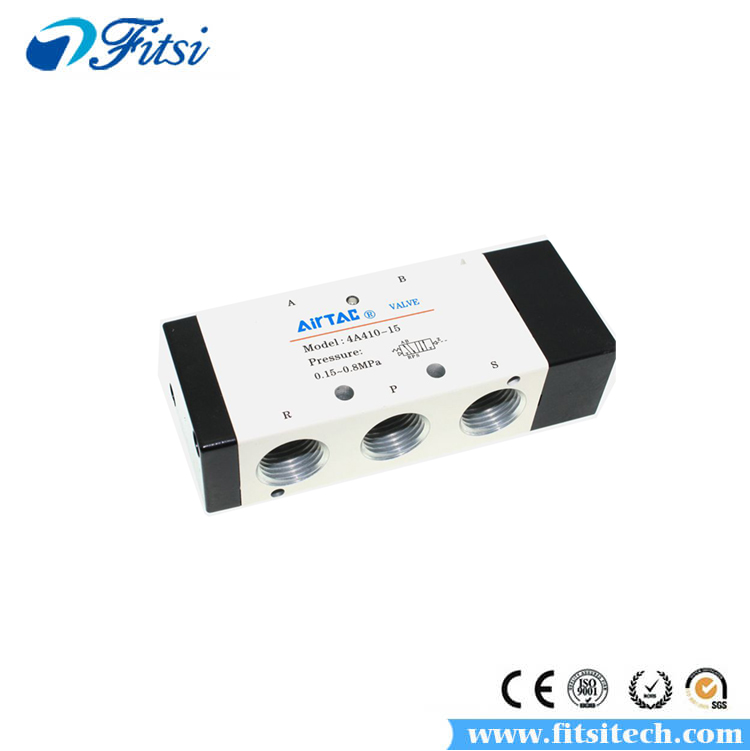

  • 4A420-15
AIRTAC 4A410-15 4A420-15 4A430C-15 4A430E-15 4A430P-15 4A400 Series Pneumatic Solenoid Control Valve

Product Name:4A300 Series Pneumatic Solenoid Valve
Product Model:4A410-15 4A420-15 4A430C-15 4A430E-15 4A430P-15
Valve Type:Solenold Valve, Pneumatic Control Valve
Brand:AiRTAC
Fluid: Air
Position & Way Number:5 Port 2 Position、5 Port 3 Position
Acting: Exterior Control



Download:
Specification:
Model:
4A410-15 4A420-15 4A430C-15 4A430E-15 4A430P-15
Fluid: Air(to be filtered by 40μm filter element)
Acting: Exterior Control
Port Size: In=Out=Exhaust=PT1/2
Orifice Size: 50.0mm²(Cv=2.79) 30.0mm²(Cv=1.68)
Valve Type: 5 Port 2 Position
5 Port 3 Position
Operating Pressure: 0.15~0.8MPa(21~114psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70
Material of Body: Aluminum Alloy
Lubrication: Not Required
Max Frequency: 3 Cycle/Sec
Weight: 555g 685g 735g

① PT thread,NPT thread and G thread are available.
② Once lubricated air is used,continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent recommended.
③ The maximum actuation frequency is the no-load state.

Product Feature:

1.Structure in sliding column mode: good tightness and sensitive reaction.

2.Double control solenoid valves have memory function.

3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.

4.No need to add oil for lubrication.
5. Multi-mounting helps to install and apply.

6.It is available to form integrated valve group with the base to save installation space.

Installation & Usage:

1.Before installing, be sure the valve hasn't been damaged via transportation.

2.It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3.Please notice whether the installation condition accords with technical requirements (such as“act-uation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4.Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.

5.Take measure to avoid vibration and frozen.

6.Firstly press the base gasket into the base, and then connect the base with the valve body by the affiliated screws. The base gasket can be pressed into the installation places that are not used temporarily, and then seal them with affiliated blank cap. When the system expands, take the blank cap off and install relative air valves;

7.To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.

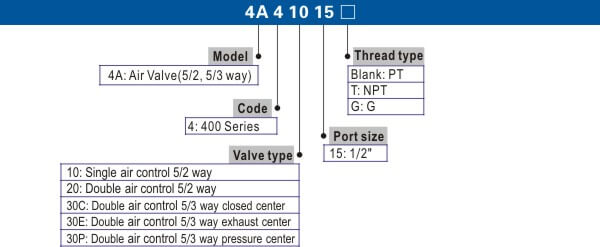

Order Code:
4A400 Series.jpg
Symbol:
4A130C06 4A130C06G 4A230E06G 4A330C10 4A11006
4A22008 4A130E06 4A230P06 4A42015 4A21006
4A22006 4A130P06 4A22008G 4A430C15 4A21008G
4A230E06 4A22006G 4A230C08 4A21008 4A31010G
4A12006 4A230C06 4A32010 4A31010 4A41015
