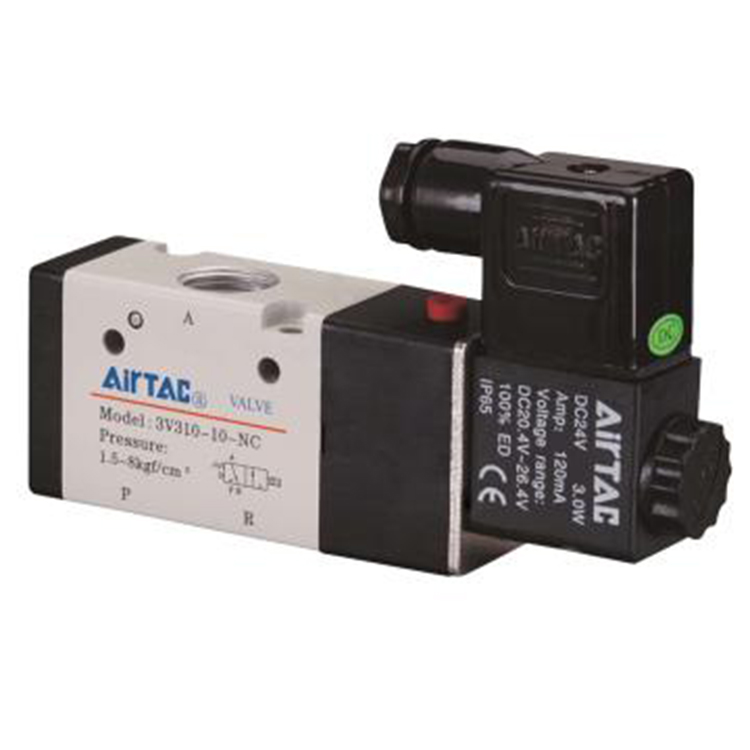

Original AirTAC 3 Position 2 Way Pneumatic Electric Directional Control Solenoid Valve 3V310-08 3V320-08 3V310-10 3V320-10
  • 3V310-08
Original AirTAC 3 Position 2 Way Pneumatic Electric Directional Control Solenoid Valve 3V310-08 3V320-08 3V310-10 3V320-10

Product Name:3V300 Series Pneumatic Solenoid Valve
Product Model:3V310-08 3V320-08 3V310-10 3V320-10
Valve Type:Solenold Valve, Directional valve
Brand:AirTAC
Fluid: Air
Position & Way Number:3 Port 2 Position
Acting: Internal pilot or external pilot



Download:
Specification:
Model:
3V310-08 3V320-08 3V310-10 3V320-10
Fluid: Air(to be filtered by 40μm filter element)
Acting: Internal pilot or external pilot
Port Size: In=Out=1/4"
In=Out=3/8"
Orifice Size: 25.0mm²(Cv=1.39) 30.0mm²(Cv=1.67)
Valve Type: 3 Port 2 Position
Operating Pressure: 0.15~0.8MPa(21~114psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70
Material of Body: Aluminum Alloy
Lubrication: Not Required
Max Frequency: 5 Cycle/Sec
Standard Voltage:
AC220V,AC110V,AC24V,DC24V,DC12V
Scope of Voltage: AC:±15% DC:±10%
Power Consumption: AC:3.5VA  DC:3.0W
Protection: IP65(DIN40050)
Temperature Classification: B Class
Electrical Entry: Termina,Grommet
Activating Time: 0.05 Sec and Below

① The maximum actuation frequency is the no-load state.

Product Feature:

1.Pilot-oriented mode:Internal pilot or external pilot.

2.Structure in sliding column mode: good tightness and sensitive reaction.

3.Double control solenoid valves have memory function.

4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.

5.No need to add oil for lubrication.

6.It is available to form integrated valve group with the base to save installation space.

7.Affiliated manual devices are equipped to facilitate installation and debugging.

8.Several standard voltage grades are optional.

Order Code:
3V300 Series.jpg
Symbol:
3V31008NCA 3V31010NOAIT 3V11006NOAIG 3V21008NCAT 3V11006NCA 3V21006NOAG
3V31008NOA 3V31010NCBI 3V11006NCAIT 3V21008NOAT 3V11006NOA 3V21006NOBG
3V31008NCAI 3V31010NOBI 3V11006NOAIT 3V21008NCAI 3V21008NCA 3V21006NOG
3V31008NOAI 3V31010NCBIG 3V11006NCBI 3V21008NOAI 3V21008NOB 3V21006NCAT
3V31008NCAG 3V31010NOBIG 3V11006NOBI 3V21008NCAIG 3V21008NOA 3V21006NCBT
3V31008NOAG 3V31010NCBIT 3V11006NCBIG 3V21008NOAIG 3V31010NCB 3V21006NCT
3V31008NCAIG 3V31010NOBIT 3V11006NOBIG 3V21008NCAIT 3V31010NOB 3V21006NOAT
3V31008NOAIG 3V32008AI 3V11006NCBIT 3V21008NOAIT 3V31010NOA 3V21006NOBT
3V31008NCAT 3V32008AIG 3V11006NOBIT 3V21008NCBI 3V11006NOAT 3V21006NOT
3V31008NOAT 3V32008AIT 3V120M5AI 3V21008NOBI 3V11006NCAT 3V31010NCAG
3V31008NCAIT 3V32008BI 3V120M5BI 3V21008NCBIG 3V110M5NOA 3V31010NOAT
3V31008NOAIT 3V32008BIG 3V12006AI 3V21008NOBIG 3V110M5NOB 3V31010NCAT
3V31008NCB 3V32008BIT 3V12006AIG 3V21008NCBIT 3V110M5NCA 3V31010NOBT
3V31008NOB 3V32010AI 3V12006AIT 3V21008NOBIT 3V110M5NCB 3V31010NCBT
3V31008NCBI 3V32010AIG 3V12006BI 3V22006AT 3V110M5NOAG 3V11006NCAG
3V31008NOBI 3V32010AIT 3V12006BIG 3V22006AI 3V110M5NOBG 3V11006NOAG
3V31008NCBG 3V32010BI 3V12006BIT 3V22006AIG 3V110M5NCAG 3V21006NCA
3V31008NOBG 3V32010BIG 3V21006NCAI 3V22006AIT 3V110M5NCBG 3V11006NCBG
3V31008NCBIG 3V32010BIT 3V21006NOAI 3V22006BT 3V110M5NOAT 3V11006NOB
3V31008NOBIG 3V110M5NCAI 3V21006NCAIG 3V22006BI 3V110M5NOBT 3V21006NCB
3V31008NCBT 3V110M5NOAI 3V21006NOAIG 3V22006BIG 3V110M5NCAT 3V21008NCAG
3V31008NOBT 3V110M5NCBI 3V21006NCAIT 3V22006BIT 3V110M5NCBT 3V21008NOAG
3V31008NCBIT 3V110M5NOBI 3V21006NOAIT 3V22008AI 3V110M5NCG 3V21008NCB
3V31008NOBIT 3V11006NCBT 3V21006NCBI 3V22008AIG 3V110M5NCT 3V21008NOBG
3V31010NCAI 3V11006NOBG 3V21006NOBI 3V22008AIT 3V21006NOA 3V31010NCA
3V31010NOAI 3V11006NOBT 3V21006NCBIG 3V22008BI 3V21006NOB 3V31010NOAG
3V31010NCAIG 3V11006NCAI 3V21006NOBIG 3V22008BIG 3V21006NCAG 3V31010NCBG
3V31010NOAIG 3V11006NOAI 3V21006NCBIT 3V22008BIT 3V21006NCBG 3V31010NOBG
3V31010NCAIT 3V11006NCAIG 3V21006NOBIT 3V11006NCB 3V21006NCG
