超薄气缸系列
亚德客TACE系列紧凑型气缸TACE80X5 TACE80X10 TACE80X15 TACE80X20 TACE80X25 TACE80X30 TACE80X35 TACE80X45 TACE80X50
  • TACE20X30
  • TACE20X30-1
  • TACE20X30-2
亚德客TACE系列紧凑型气缸TACE80X5 TACE80X10 TACE80X15 TACE80X20 TACE80X25 TACE80X30 TACE80X35 TACE80X45 TACE80X50

产品名称:TACE系列紧凑型气缸
产品型号:TACE80X5 TACE80X10 TACE80X15 TACE80X20 TACE80X25 TACE80X30 TACE80X35 TACE80X45 TACE80X50
品牌: 亚德客(AirTAC)
工作介质: 空气
作动方式: 复动型,单动型



下载:
产品规格:

规格:

内径(mm): 12 16 20 25 32 40 50 63 80 100 125
作动型式:
复动型
单动型
-
工作介质:
空气(经40μm以上滤网过滤)
使用压力范围: 复动型: 0.1~1.0MPa(15~145psi)
单动型: 0.2~1.0MPa(15~145psi)
保证耐压力: 1.5MPa(215psi)
工作温度(℃): -20~80
使用速度范围 (mm/s): 复动型:30~500   单动型:50~500
行程公差范围: 行程≤0~150(0~+1.0)   行程>150(0~+1.4)
缓冲型: 防撞垫
接管口径: M5x0.8
G1/8
G1/4

①接管牙型有NPT、G牙可供选择;.

行程:

内径(mm) 标准行程(mm) 最大行程(mm)
普通型:

复动: 12 5 10 15 20 25 30 35 40 45 50 50
16 5 10 15 20 25 30 35 40 45 50 55 60 70 75 75
20 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 100
25 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150  150
32 40 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 200
50 63 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250 250
80 100 125 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250 275 300 300
单动: 12 5 10 10
16~100 5 10 15 20 25 25
导杆型: 复动: 12 5 10 15 20 25 30 35 40 45 50 50
16 5 10 15 20 25 30 35 40 45 50 55 60 70 75 75
20 25 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 100
32 40 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100  100
50 63 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100  100
80 100 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100  100

①在容许行程范围内,当行程>最大行程时,作非标处理,其他特殊行程请与本公司联系;
②最大行程范围内的非标行程以上一级标准行程改制而成,其外形尺寸为上一级标准行程气缸的外形尺寸。如行程为23的非标行程气缸是由标准行程为25的标准气缸改制而成,其外形尺寸与其相同。

产品特征:

1、执行ISO21287标准,安装尺寸通用性强;

2、缸体与前、后盖采用螺纹连接,强度好,维修方便;

3、缸体内径精加工后再作硬质氧化处理,耐磨、耐久性好;

4、活塞密封采用异型双向密封结构,尺寸紧凑,有储油功能;

5、紧凑型结构,能有效节省安装空间,与同缸径ISO15552标准气缸相比,节省空间达50%;

6、缸体三边带有磁感应开关槽,安装感应开关方便;

7、内置防撞垫,有效吸收高速运转和机械回转产生的残余能量;

8、多种规格安装附件可供选择。


安装与使用:

1、工作中负载有变化时,应选用输出力充裕的气缸;

2、在高温或者腐蚀性条件下,应选用相应的耐高温或耐腐蚀性气缸;

3、在湿度大,粉尘多,或者有水滴、油尘、焊渣的场合,气缸应采取必要的防护措施;

4、气缸接入管道前,必须清除管道内脏物,防止杂物进入气缸内;

5、气缸使用介质应经过40μm以上滤芯过滤后方可使用;

6、在低温环境下,应采取抗冻措施,防止系统中的水分冻结;

7、气缸使用前应经空载试运转,运转前将缓冲调至最小,逐步放松,以免产生过大冲击而损伤气缸;

8、气缸在工作过程中应尽可能避免受侧向载荷,以维持气缸的正常工作和使用寿命;

9、气缸拆下长时间不使用,要注意表面防锈,进排气口应加防尘堵塞帽。特别注意:前、后盖不可拆卸。


订购码:


更多产品型号参考如下:
TACE12X5 TACE12X10 TACE12X15 TACE12X20 TACE12X25 TACE12X30 TACE12X35 TACE12X40 TACE12X45 TACE12X50
TACE16X5 TACE16X10 TACE16X15 TACE16X20 TACE16X25 TACE16X30 TACE16X35 TACE16X40 TACE16X45 TACE16X50
TACE16X55 TACE16X60 TACE16X70 TACE16X75 TACE20X5 TACE20X10 TACE20X15 TACE20X20 TACE20X25 TACE20X30
TACE20X35 TACE20X40 TACE20X45 TACE20X50 TACE20X55 TACE20X60 TACE20X70 TACE20X75 TACE20X80 TACE20X90
TACE20X100 TACE25X5 TACE25X10 TACE25X15 TACE25X20 TACE25X25 TACE25X30 TACE25X35 TACE25X40 TACE25X45
TACE25X50 TACE25X55 TACE25X60 TACE25X70 TACE25X75 TACE25X80 TACE25X90 TACE25X100 TACE32X5 TACE32X10
TACE32X15 TACE32X20 TACE32X25 TACE32X30 TACE32X35 TACE32X40 TACE32X45 TACE32X50 TACE32X55 TACE32X60
TACE32X70 TACE32X75 TACE32X80 TACE32X90 TACE32X100 TACE40X5 TACE40X10 TACE40X15 TACE40X20 TACE40X25
TACE40X30 TACE40X35 TACE40X40 TACE40X45 TACE40X50 TACE40X55 TACE40X60 TACE40X70 TACE40X75 TACE40X80
TACE40X90 TACE40X100 TACE50X5 TACE50X10 TACE50X15 TACE50X20 TACE50X25 TACE50X30 TACE50X35 TACE50X40
TACE50X45 TACE50X50 TACE50X55 TACE50X60 TACE50X70 TACE50X75 TACE50X80 TACE50X90 TACE50X100 TACE63X5
TACE63X10 TACE63X15 TACE63X20 TACE63X25 TACE63X30 TACE63X35 TACE63X40 TACE63X45 TACE63X50 TACE63X55
TACE63X60 TACE63X70 TACE63X75 TACE63X80 TACE63X90 TACE63X100 TACE80X5 TACE80X10 TACE80X15 TACE80X20
TACE80X25 TACE80X30 TACE80X35 TACE80X40 TACE80X45 TACE80X50 TACE80X55 TACE80X60 TACE80X70 TACE80X75
TACE80X80 TACE80X90 TACE80X100 TACE100X5 TACE100X10 TACE100X15 TACE100X20 TACE100X25 TACE100X30 TACE100X35
TACE100X40 TACE100X45 TACE100X50 TACE100X55 TACE100X60 TACE100X70 TACE100X75 TACE100X80 TACE100X90 TACE100X100
标记:

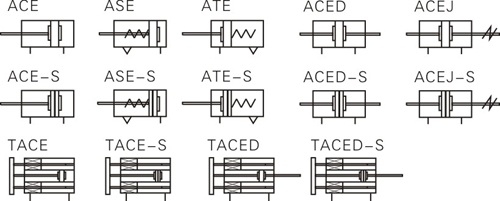

ACE Series.jpg

TACE12X5 TACE32X10 TACE80X15 TACE20X10S TACE50X10S
TACE12X10 TACE32X15 TACE80X20 TACE20X15S TACE50X15S
TACE12X15 TACE32X20 TACE80X25 TACE20X20S TACE50X20S
TACE12X20 TACE32X25 TACE80X30 TACE20X25S TACE50X25S
TACE12X25 TACE32X30 TACE80X40 TACE20X30S TACE50X30S
TACE16X10 TACE40X10 TACE100X20 TACE25X10S TACE63X10S
TACE16X15 TACE40X15 TACE100X25 TACE25X15S TACE63X15S
TACE16X20 TACE40X20 TACE100X30 TACE25X20S TACE63X20S
TACE16X25 TACE40X25 TACE100X40 TACE25X25S TACE63X25S
TACE16X30 TACE40X30 TACE100X50 TACE25X30S TACE63X30S
TACE20X10 TACE50X10 TACE12X5S TACE32X10S TACE80X15S
TACE20X15 TACE50X15 TACE12X10S TACE32X15S TACE80X20S
TACE20X20 TACE50X20 TACE12X15S TACE32X20S TACE80X25S
TACE20X25 TACE50X25 TACE12X20S TACE32X25S TACE80X30S
TACE20X30 TACE50X30 TACE12X25S TACE32X30S TACE80X40S
TACE25X10 TACE63X10 TACE16X10S TACE40X10S TACE100X20S
TACE25X15 TACE63X15 TACE16X15S TACE40X15S TACE100X25S
TACE25X20 TACE63X20 TACE16X20S TACE40X20S TACE100X30S
TACE25X25 TACE63X25 TACE16X25S TACE40X25S TACE100X40S
TACE25X30 TACE63X30 TACE16X30S TACE40X30S TACE100X50S
