西门子SIMATIC S7-300 CPU 6ES7317-7UL10-0AB0 6ES7315-7TJ10-0AB0 6ES7318-3FL01-0AB0 6ES7317-7TK10-0AB0
  • 15783776904_1109016826
西门子SIMATIC S7-300 CPU 6ES7317-7UL10-0AB0 6ES7315-7TJ10-0AB0 6ES7318-3FL01-0AB0 6ES7317-7TK10-0AB0

品牌:SIEMENS/西门子
系列:西门子SIMATIC S7-300 CPU
型号:6ES7317-7UL10-0AB0 6ES7315-7TJ10-0AB0 6ES7318-3FL01-0AB0 6ES7317-7TK10-0AB0
工作电压:24V



下载:
产品规格:


产品特征:

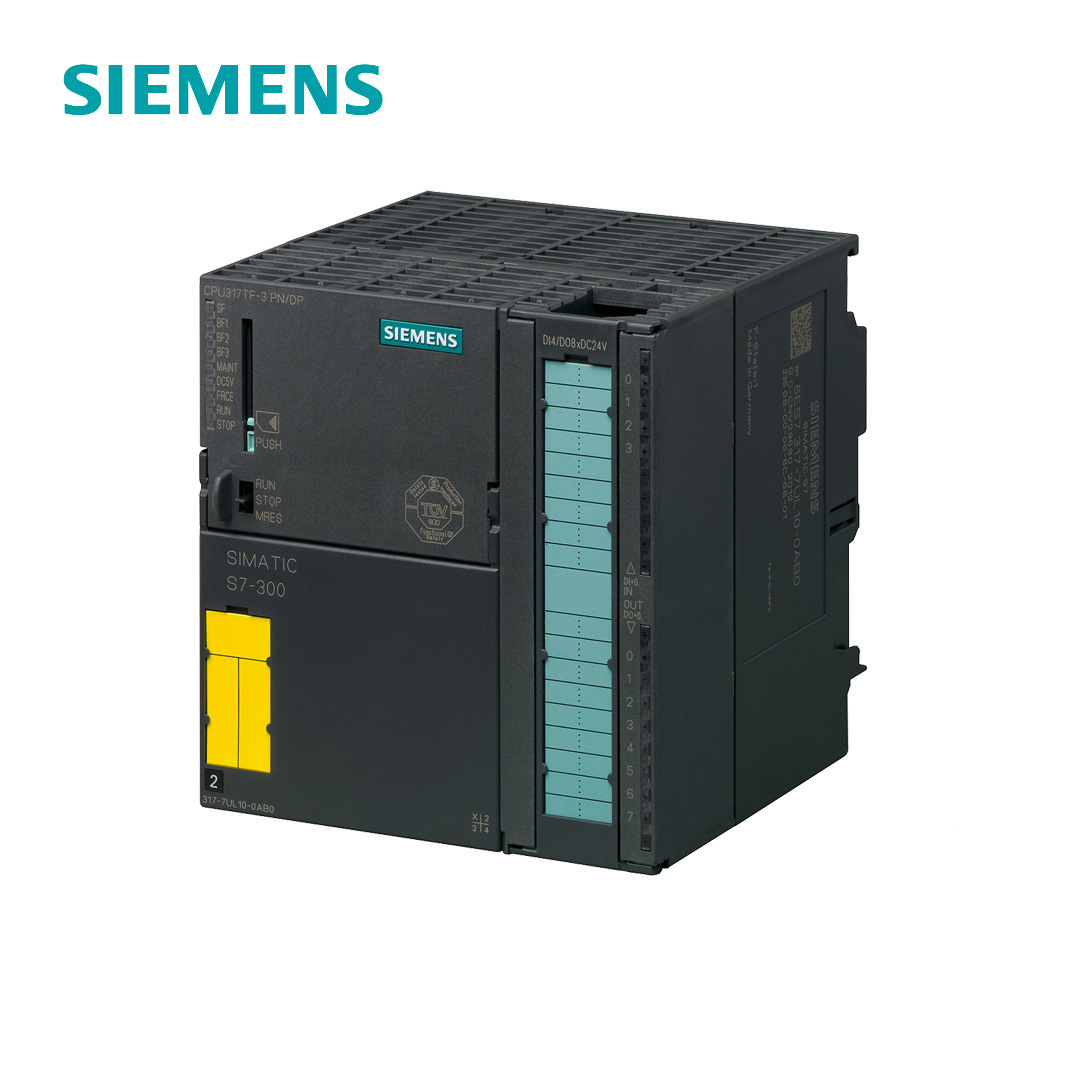

SIMATIC S7-300, CPU 317TF-3 PN/DP, Central processing unit for PLC, Technology and safety tasks, 1.5 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface DP (drive), 3rd interface Ethernet PROFINET with 2-port switch, Integr. I/O for technology, Front connector (1x 40-pole) and Micro Memory Card min. 8 MB required

订购码:


General information
HW functional status 01
Firmware version CPU: V3.2; integrated technology V4.1.5
Product function
● Isochronous mode Yes; Via PROFIBUS DP or PROFINET interface
Engineering with
● Programming package STEP 7 V5.5 SP2 or higher; S7-Technology option package V4.2 SP3 or higher, Distributed Safety V5.4 SP5 or higher, S7-F Configuration Pack V5.5 SP10 or higher
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
external protection for power supply lines (recommendation) 2 A min.
Load voltage L+
● Rated value (DC)
● Reverse polarity protection
24 V
Yes
Digital outputs
— Rated value (DC)
— Reverse polarity protection
24 V; 2L+
No; 2L+
Input current
Current consumption (rated value) 1 100 mA
Current consumption (in no-load operation), typ. 270 mA
Inrush current, typ. 6.5 A
I²t 1 A²·s
Power loss
Power loss, typ. 8.5 W
Memory
Work memory
● integrated
● expandable
1 536 kbyte
No
Load memory
● Plug-in (MMC)
● Plug-in (MMC), max.
● Data management on MMC (after last programming), min.
Yes
8 Mbyte
10 y
Backup
● present
● without battery
Yes; Guaranteed by MMC (maintenance-free)
Yes; Program and data
CPU processing times
for bit operations, typ. 0.025 µs
for word operations, typ. 0.03 µs
for fixed point arithmetic, typ. 0.04 µs
for floating point arithmetic, typ. 0.16 µs
CPU-blocks
Number of blocks (total) 2 048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
DB
● Number, max.
● Size, max.
2 048; Number range: 1 to 16000
64 kbyte
FB
● Number, max.
● Size, max.
2 048; Number range: 0 to 7999
64 kbyte
FC
● Number, max.
● Size, max.
2 048; Number range: 0 to 7999
64 kbyte
OB
● Number, max.
● Size, max.
● Number of free cycle OBs
● Number of time alarm OBs
● Number of delay alarm OBs
● Number of cyclic interrupt OBs
● Number of process alarm OBs
● Number of DPV1 alarm OBs
● Number of isochronous mode OBs
● Number of technology synchronous alarm OBs
● Number of startup OBs
● Number of asynchronous error OBs
● Number of synchronous error OBs
see instruction list 64 kbyte
1; OB 1
1; OB 10
2; OB 20, 21
4; OB 32, 33, 34, 35
1; OB 40
3; OB 55, 56, 57
1; OB 61 - isochronous mode is possible either on DP or PROFINET IO (not simultaneously)
1; OB 65
1; OB 100
6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)
2; OB 121, 122
Nesting depth
● per priority class
● additional within an error OB
16
4
Counters, timers and their retentivity
S7 counter
● Number 512
Retentivity
— adjustable
— lower limit
— upper limit
— preset
Yes
0
511
Z 0 to Z 7
Counting range
— adjustable
— lower limit
— upper limit
Yes
0
999
IEC counter
● present
● Type
● Number
Yes
SFB
Unlimited (limited only by RAM capacity)
S7 times
● Number 512
Retentivity
— adjustable
— lower limit
— upper limit
— preset
Yes 0
511
No retentivity
Time range
— lower limit 10 ms
— upper limit 9 990 s
IEC timer
● present
● Type
● Number
Yes
SFB
Unlimited (limited only by RAM capacity)
Data areas and their retentivity
Retentive data area (incl. timers, counters, flags), max. 256 kbyte
Flag
● Size, max.
● Retentivity available
● Retentivity preset
● Number of clock memories
4 096 byte
Yes; From MB 0 to MB 4 095
MB 0 to MB 15
8; 1 memory byte
Data blocks
● Retentivity adjustable
● Retentivity preset
Yes; via non-retain property on DB
Yes
Local data
● per priority class, max. 32 768 byte; Max. 2048 bytes per block
Address area
I/O address area
● Inputs
● Outputs
8 192 byte
8 192 byte
of which distributed
— Inputs
— Outputs
8 192 byte
8 192 byte
Process image
● Inputs
● Outputs
● Inputs, adjustable
● Outputs, adjustable
● Inputs, default
● Outputs, default
8 192 byte
8 192 byte
8 192 byte
8 192 byte
1 024 byte
1 024 byte
Default addresses of the integrated channels
— Digital inputs
— Digital outputs
66
66
Subprocess images
● Number of subprocess images, max. 1; With PROFINET IO, the length of the user data is limited to 1600 bytes
Digital channels
● Inputs
— of which central
● Outputs
— of which central
65 536
256
65 536
256
Analog channels
● Inputs
— of which central
● Outputs
— of which central
4 096
64
4 096
64
Hardware configuration
Number of expansion units, max. 0
Number of DP masters
● integrated
● via CP
2; 1 DP and 1 DP (drive)
2; for DP
Number of operable FMs and CPs (recommended)
● FM
● CP, PtP
● CP, LAN
8
8
8
Rack
● Racks, max.
● Modules per rack, max.
1
8
Time of day
Clock
● Hardware clock (real-time)
● retentive and synchronizable
● Backup time
● Deviation per day, max.
● Behavior of the clock following POWER-ON
● Behavior of the clock following expiry of backup period
Yes
Yes
6 wk; At 40 °C ambient temperature
10 s; Typ.: 2 s
Clock continues running after POWER OFF

the clock continues at the time of day it had when power was switched offoff
Operating hours counter
● Number 4
● Number/Number range 0 to 3
● Range of values 0 to 2^31 hours (when using SFC 101)
● Granularity 1 h
● retentive Yes; Must be restarted at each restart
Clock synchronization
● supported Yes
● to MPI, master Yes
● to MPI, slave Yes
● to DP, master Yes
● to DP, slave Yes; Only time-of-day slave
● in AS, master Yes
● in AS, slave Yes
● on Ethernet via NTP Yes; As client
Digital inputs
Number of digital inputs 4
● of which inputs usable for technological functions 4
Input characteristic curve in accordance with IEC 61131, Yes
type 1
Number of simultaneously controllable inputs
horizontal installation
— up to 40 °C, max. 4
— up to 60 °C, max. 4
vertical installation
— up to 40 °C, max. 4
Input voltage
● Rated value (DC)
● for signal "0"
● for signal "1"
24 V
-3 to +5V
+15 to +30 V
Input current
● for signal "1", typ. 7 mA
Input delay (for rated value of input voltage)
for technological functions
— at "0" to "1", max.
— at "1" to "0", max.
10 µs; Typical
10 µs; Typical
Cable length
● shielded, max. 1 000 m
Digital outputs
Number of digital outputs 8
● of which high-speed outputs 8
Functions for technology functions, e.g. high-speed cam switch signals
Short-circuit protection Yes
● Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to 48 V
Controlling a digital input No
Switching capacity of the outputs
● on lamp load, max. 5 W
Load resistance range
● lower limit
● upper limit
48 Ω
4 kΩ
Output voltage
● for signal "0", max.
● for signal "1", min.
3 V; (2L+)
Rated voltage -2.5 V
Output current
● for signal "1" rated value
● for signal "1" permissible range for 0 to 60 °C, min.
● for signal "1" permissible range for 0 to 60 °C, max.
● for signal "0" residual current, max.
0.5 A
5 mA

0.6 A
0.3 mA
Parallel switching of two outputs
● for uprating
● for redundant control of a load
No
No
Switching frequency
● with resistive load, max.
● with inductive load, max.
● on lamp load, max.
100 Hz
0.2 Hz; According to IEC 60947-5-1, DC-13
100 Hz
Total current of the outputs (per group)
horizontal installation
— up to 40 °C, max.
— up to 60 °C, max.
4 A
3 A
all other mounting positions
— up to 40 °C, max. 4 A
Integrated high-speed cams
● Switching accuracy (+/-) 70 µs
Cable length
● shielded, max. 1 000 m
Analog inputs
Number of analog inputs 0
Analog outputs
Number of analog outputs 0
Encoder
Connectable encoders
● 2-wire sensor No
Interfaces
Number of industrial Ethernet interfaces 1
Number of PROFINET interfaces 1
Number of RS 485 interfaces 2
Number of RS 422 interfaces 0
1. Interface
Interface type Integrated RS 485 interface
Isolated Yes
Interface types
● RS 485
● Output current of the interface, max.
Yes
200 mA
Protocols
● MPI
● PROFIBUS DP master
● PROFIBUS DP slave
● Point-to-point connection
Yes
Yes
Yes
No
MPI
● Transmission rate, max. 12 Mbit/s
Services
— PG/OP communication
— Routing
— Global data communication
— S7 basic communication
— S7 communication
— S7 communication, as client
— S7 communication, as server
Yes
Yes
Yes
Yes
Yes
No; but via CP and loadable FB
Yes
PROFIBUS DP master
● Transmission rate, max. 12 Mbit/s
● Number of DP slaves, max. 124
Services
— PG/OP communication
— Routing
— Global data communication
— S7 basic communication
— S7 communication
— S7 communication, as client
— S7 communication, as server
— Equidistance
— Isochronous mode
— SYNC/FREEZE
— Activation/deactivation of DP slaves
— Number of DP slaves that can be simultaneously activated/deactivated, max.
— Direct data exchange (slave-to-slave communication)
— DPV1
Yes
Yes
No
Yes; I blocks only
Yes
No
Yes
Yes
Yes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO
Yes
Yes
8
Yes; as subscriber
Yes
Address area
— Inputs, max.
— Outputs, max.
8 kbyte
8 kbyte
User data per DP slave
— Inputs, max.
— Outputs, max.
244 byte
244 byte
PROFIBUS DP slave
● Transmission rate, max.
● automatic baud rate search
● Address area, max.
● User data per address area, max.
12 Mbit/s
Yes; only with passive interface 32
32 byte
Services
— PG/OP communication
— Routing
— Global data communication
— S7 basic communication
— S7 communication
— S7 communication, as client
— S7 communication, as server
— Direct data exchange (slave-to-slave communication)
— DPV1
Yes
Yes; Only with active interface No
No Yes No
Yes; Connection configured on one side only Yes
No
Transfer memory
— Inputs
— Outputs
244 byte
244 byte
2. Interface
Interface type Integrated RS 485 interface
Isolated Yes
Interface types
● RS 485
● Output current of the interface, max.
Yes
200 mA
Protocols
● MPI
● PROFIBUS DP master
● PROFIBUS DP slave
● Point-to-point connection
No
Yes; DP(DRIVE)-Master
No
No
PROFIBUS DP master
● Transmission rate, max.
● Number of DP slaves, max.
12 Mbit/s
64
Services
— PG/OP communication
— Routing
No
No
— Global data communication
— S7 basic communication
— S7 communication
— Equidistance
— Isochronous mode
— SYNC/FREEZE
— Activation/deactivation of DP slaves
— DPV1
No
No
No
Yes
Yes
No
Yes

No
Address area
— Inputs, max.
— Outputs, max.
1 024 byte
1 024 byte
User data per DP slave
— Inputs, max.
— Outputs, max.
244 byte
244 byte
PROFIBUS DP slave
● GSD file
● Transmission rate, max.
http://support.automation.siemens.com in Product Support area
12 Mbit/s
3. Interface
Interface type PROFINET
Isolated Yes
automatic detection of transmission rate Yes; 10/100 Mbit/s
Autonegotiation Yes
Autocrossing Yes
Change of IP address at runtime, supported Yes
Interface types
● RJ 45 (Ethernet)
● Number of ports
● integrated switch
Yes
2
Yes
Protocols
● MPI
● PROFINET IO Controller
● PROFINET IO Device
● PROFIBUS DP master
● PROFIBUS DP slave
● Open IE communication
● Web server
● Media redundancy
No
Yes; Also simultaneously with IO-Device functionality
Yes; Also simultaneously with IO Controller functionality
No
No
Yes; Via TCP/IP, ISO on TCP, and UDP
Yes
Yes
PROFINET IO Controller
● Transmission rate, max. 100 Mbit/s
Services
— PG/OP communication
— Routing
— S7 communication
— Isochronous mode
— Shared device
— Prioritized startup
— Number of IO devices with prioritized startup, max.
— Number of connectable IO Devices, max.
— Of which IO devices with IRT, max.
— of which in line, max.
— Number of connectable IO Devices for RT, max.
— of which in line, max.
— Activation/deactivation of IO Devices
— Number of IO Devices that can be simultaneously activated/deactivated, max.
— IO Devices changing during operation (partner ports), supported
Yes
Yes
Yes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32
Yes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

Yes

Yes
32
128
64
64
128

128
Yes
8
Yes
— Number of IO Devices per tool, max.
— Device replacement without swap medium
— Send cycles
— Updating time
8
Yes
250 µs, 500 µs, 1 ms, 2 ms, 4 ms
250 µs to 512 ms (depending on the operating mode, see Manual "S7- 300 CPU 31xC and CPU 31x, technical Data" for more details)
Address area
— Inputs, max.
— Outputs, max.
— User data consistency, max.
8 kbyte
8 kbyte
1 024 byte
PROFINET IO Device
Services
— PG/OP communication
— Routing
— S7 communication
— Isochronous mode
— IRT
— PROFIenergy
— Shared device
— Number of IO Controllers with shared device, max.
Yes
Yes
Yes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32
No
Yes
Yes; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device
Yes
2
Transfer memory
— Inputs, max.
— Outputs, max.
1 440 byte; Per IO Controller with shared device
1 440 byte; Per IO Controller with shared device
Submodules
— Number, max.
— User data per submodule, max.
64
1 024 byte
Open IE communication
● Number of connections, max.
● Local port numbers used at the system end
● Keep-alive function, supported
16
0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Yes
Protocols
PROFIsafe Yes
Redundancy mode
Media redundancy
— Switchover time on line break, typ.
— Number of stations in the ring, max.
200 ms; PROFINET MRP
50
Open IE communication
● TCP/IP
— Number of connections, max.
— Data length for connection type 01H, max.
— Data length for connection type 11H, max.
— several passive connections per port, supported
● ISO-on-TCP (RFC1006)
— Number of connections, max.
— Data length, max.
● UDP
— Number of connections, max.
— Data length, max.
Yes; via integrated PROFINET interface and loadable FBs
16
1 460 byte
32 768 byte
Yes
Yes; via integrated PROFINET interface and loadable FBs
16
32 768 byte
Yes; via integrated PROFINET interface and loadable FBs
16
1 472 byte
Web server
● supported
● User-defined websites
● Number of HTTP clients
Yes
Yes
5
communication functions / header
PG/OP communication Yes
Data record routing Yes
Global data communication
● supported Yes
● Number of GD loops, max.
● Number of GD packets, max.
● Number of GD packets, transmitter, max.
● Number of GD packets, receiver, max.
● Size of GD packets, max.
● Size of GD packet (of which consistent), max.
8
8
8
8
22 byte
22 byte
S7 basic communication
● supported
● User data per job, max.
● User data per job (of which consistent), max.
Yes
76 byte
76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)
S7 communication
● supported
● as server
● as client
● User data per job, max.
Yes
Yes
Yes; via integrated PROFINET interface and loadable FB or via CP and loadable FB
See online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication)
S5 compatible communication
● supported Yes; via CP and loadable FC
Number of connections
● overall
● usable for PG communication
— reserved for PG communication
— adjustable for PG communication, min.
— adjustable for PG communication, max.
● usable for OP communication
— reserved for OP communication
— adjustable for OP communication, min.
— adjustable for OP communication, max.
● usable for S7 basic communication
— reserved for S7 basic communication
— adjustable for S7 basic communication, min.
— adjustable for S7 basic communication, max.
● usable for S7 communication
— reserved for S7 communication
— adjustable for S7 communication, min.
— adjustable for S7 communication, max.
● total number of instances, max.
● usable for routing
32
31
1
1
31
31
1
1
31
30
0
0
30
16
0
0
16
32
X1 as MPI: max. 10; X1 as DP master: max. 24; X1 as DP slave (active): max. 14; X2 as PROFINET: 24 max.
S7 message functions
Number of login stations for message functions, max. 32; Depending on the configured connections for PG/OP and S7 basic communication
Process diagnostic messages Yes
simultaneously active Alarm-S blocks, max. 300
Test commissioning functions
Status block Yes; Up to 2 simultaneously
Single step Yes
Number of breakpoints 4; without continuation
Status/control
● Status/control variable
● Variables
● Number of variables, max.
— of which status variables, max.
— of which control variables, max.
Yes
Inputs, outputs, memory bits, DB, times, counters 30
30
14
Forcing
● Forcing
● Forcing, variables
● Number of variables, max.
Yes
Inputs, outputs
10
Diagnostic buffer
● present
● Number of entries, max.
— adjustable
— of which powerfail-proof
● Number of entries readable in RUN, max.
— adjustable
— preset
Yes
500
No
100; Only the last 100 entries are retained 499
Yes; From 10 to 499
10
Service data
● can be read out Yes
Interrupts/diagnostics/status information
Alarms No
Diagnostics function No
Diagnostics indication LED
● Status indicator digital input (green)
● Status indicator digital output (green)
Yes
Yes
Potential separation
Potential separation digital inputs
● between the channels and backplane bus Yes
Potential separation digital outputs
● between the channels and backplane bus Yes
Isolation
Isolation tested with 500 V DC
Ambient conditions
Ambient temperature during operation
● min.
● max.
0 °C
60 °C
configuration / header
Configuration software
● STEP 7 Yes; STEP 7 V5.5 SP2 or higher and S7-Technology Option Package V4.2 SP3, S7 F Configuration Pack V5.5 SP10, S7 Distributed Safety Option Package V5.4 SP5
configuration / programming / header
● Command set
● Nesting levels
● System functions (SFC)
● System function blocks (SFB)
see instruction list
8
see instruction list
see instruction list
Programming language
— LAD
— FBD
— STL
— SCL
— CFC
— GRAPH
— HiGraph®
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Know-how protection
● User program protection/password protection
● Block encryption
Yes

Yes; With S7 block Privacy
Dimensions
Width 120 mm
Height 125 mm
Depth 130 mm
Weights
Weight, approx. 640 g


标记:
6ES7288-1CR20-0AA1 6ES7288-1CR40-0AA1 6ES7288-1ST20-0AA0
6ES7288-1ST30-0AA0 6ES7288-1ST40-0AA0 6ES7288-1ST60-0AA0
6ES7288-1CR40-0AA0 6ES7288-1CR60-0AA0 6ES7288-1SR40-0AA0
6ES7288-1SR60-0AA0 6ES7288-1SR20-0AA0 6ES7288-1SR30-0AA0
6ES7288-1ST20-0AA1 6ES7288-1ST60-0AA1 6ES7288-1ST40-0AA1
6ES7288-1SR60-0AA1 6ES7288-1SR30-0AA1 6ES7288-1SR20-0AA1
6ES7288-1SR40-0AA1 6ES7288-1ST30-0AA1 6ES7288-1SR20-0AA1
6ES7288-5DT04-0AA0 6ES7288-5BA01-0AA0 6ES7288-1ST20-0AA0
6ES7288-1ST60-0AA0 6ES7288-1SR40-0AA0 6ES7288-1SR30-0AA0
6ES7288-1SR20-0AA0 6ES7288-5AQ01-0AA0 6ES7288-1ST40-0AA0
6ES7288-1ST30-0AA0 6ES7288-1CR40-0AA0 6ES7288-1SR60-0AA0
6ES7288-1CR60-0AA1 6ES7288-5AE01-0AA0 6ES7288-1CR60-0AA0
6ES7288-1CR30-0AA1 6ES7288-6EC01-0AA0 6ES7288-5CM01-0AA0
6ES7288-5DT04-0AA0 6ES7288-5AE01-0AA0 6ES7288-5AQ01-0AA0
6ES7288-5BA01-0AA0


联系我们
E-mail:info@fitsitech.com  手机:19928764188 联系人:明经理
地址:深圳市龙华区龙华街道清华社区龙观东路57号尚美时代


咨询
姓 名:
邮件:
描述:
CopyRight © 2010~2017 深圳市菲特思科技有限公司 版权所有.     网站地图    粤ICP备14001694号-由万创科技提供技术支持
展开
  • QQ咨询

官方二维码
