产品名称:SAI系列标准气缸
产品型号:SAI32X25S SAI32X50S SAI32X75S SAI32X100S SAI32X125S SAI32X150S SAI32X175S SAI32X200S SAI32X250S
品牌: 亚德客(AiRTAC)
工作介质: 空气
作动方式: 复动型



下载:
产品规格:

规格:

内径: 32 40 50 63 80 100 125 160 200
动作型式: 复动型
工作介质:
空气(经40μm以上滤网过滤)
固定型式:
SE 基本型  FA  FB  CA  CB  CR  LB  TC  FTC  TCM1  TCM2
SED、SEJ 基本型  FA  LB  TC  FTC  TCM1  TCM2
使用压力范围: 0.10~1.0MPa(15~145psi)(1.0~10.0bar)
保证耐压力: 1.5MPa(215psi)(15bar)
工作温度(℃): -20~80
使用速度范围mm/s 30~800 30~500
行程公差范围: 0~250(0~+0.1)  251~1000(0~+1.4)   1001~1500(0~+1.8)
缓冲型式:
可调缓冲
缓冲行程: 27 30 36 40 50
接管口径: PT1/8 PT1/4
PT3/8
PT1/2 PT3/4

①接管牙型有NPT、G牙可供选择;

行程:

内径(mm) 标准行程(mm) 最大行程(mm) 容许行程(mm)
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 1000 1800
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 1200 1800
50 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1200 1800
63 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 1800
80 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 1800
100 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 1800
125 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 1800
160 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
200 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000



产品特征:

1、ISO15552(原ISO6431)标准气缸;

2、活塞密封采用两个Y型单向密封结构,有补偿功能,寿命长,启动压力低;

3、铝管米字型,无拉杆,防腐性能好;

4、气缸缓冲调节平稳;

5、多种规格的气缸及气缸安装附件可供客户选择使用。

安装与使用:

1、工作中负载有变化时,应选用输出力充裕的气缸;

2、在高温或者腐蚀性条件下,应选用相应的耐高温或耐腐蚀性气缸;

3、在湿度大,粉尘多,或者有水滴、油尘、焊渣的场合,气缸应采取必要的防护措施;

4、气缸接入管道前,必须清除管道内脏物,防止杂物进入气缸内;

5、气缸使用介质应经过40μm以上滤芯过滤后方可使用;

6、在低温环境下,应采取抗冻措施,防止系统中的水分冻结;

7、气缸使用前应经空载试运转,运转前将缓冲调至最小,逐步放松,以免产生过大冲击而损伤气缸;

8、气缸在工作过程中应尽可能避免受侧向载荷,以维持气缸的正常工作和使用寿命;

9、气缸拆下长时间不使用,要注意表面防锈,进排气口应加防尘堵塞帽。

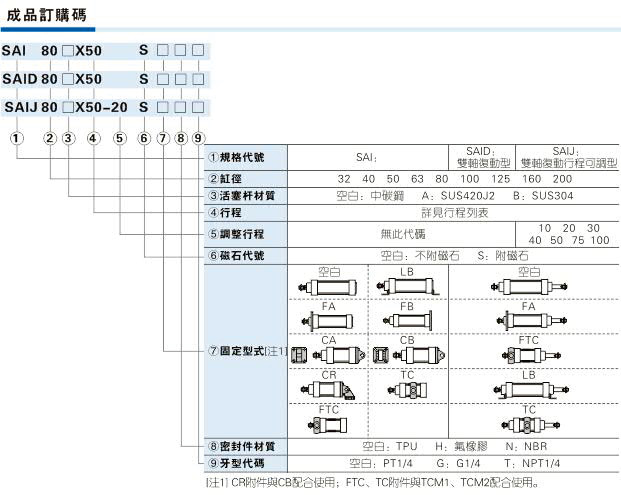

订购码:


更多产品型号如下:

SAI32X25S SAI32X50S SAI32X75S SAI32X80S SAI32X100S
SAI32X125S SAI32X150S SAI32X160S SAI32X175S SAI32X200S
SAI32X250S SAI32X300S SAI32X350S SAI32X400S SAI32X450S
SAI32X500S SAI40X25S SAI40X50S SAI40X75S SAI40X80S
SAI40X100S SAI40X125S SAI40X150S SAI40X160S SAI40X175S
SAI40X200S SAI40X250S SAI40X300S SAI40X350S SAI40X400S
SAI40X450S SAI40X500S SAI40X600S SAI40X700S SAI40X800S
SAI50X25S SAI50X50S SAI50X75S SAI50X80S SAI50X100S
SAI50X125S SAI50X150S SAI50X160S SAI50X175S SAI50X200S
SAI50X250S SAI50X300S SAI50X350S SAI50X400S SAI50X450S
SAI50X500S SAI50X600S SAI50X700S SAI50X800S SAI50X900S
SAI63X25S SAI63X50S SAI63X75S SAI63X80S SAI63X100S
SAI63X125S SAI63X150S SAI63X160S SAI63X175S SAI63X200S
SAI63X250S SAI63X300S SAI63X350S SAI63X400S SAI63X450S
SAI63X500S SAI63X600S SAI63X700S SAI63X800S SAI63X900S
SAI80X25S SAI80X50S SAI80X75S SAI80X80S SAI80X100S
SAI80X125S SAI80X150S SAI80X160S SAI80X175S SAI80X200S
SAI80X250S SAI80X300S SAI80X350S SAI80X400S SAI80X450S
SAI80X500S SAI80X600S SAI80X700S SAI80X800S SAI80X900S
SAI100X25S SAI100X50S SAI100X75S SAI100X80S SAI100X100S
SAI100X125S SAI100X150S SAI100X160S SAI100X175S SAI100X200S
SAI100X250S SAI100X300S SAI100X350S SAI100X400S SAI100X450S
SAI100X500S SAI100X600S SAI100X700S SAI100X800S SAI100X900S
SAI125X25S SAI125X50S SAI125X75S SAI125X80S SAI125X100S
SAI125X125S SAI125X150S SAI125X160S SAI125X175S SAI125X200S
SAI125X250S SAI125X300S SAI125X350S SAI125X400S SAI125X450S
SAI125X500S SAI125X600S SAI125X700S SAI125X800S SAI125X900S
SAI160X25S SAI160X50S SAI160X75S SAI160X80S SAI160X100S
SAI160X125S SAI160X150S SAI160X160S SAI160X175S SAI160X200S
SAI160X250S SAI160X300S SAI160X350S SAI160X400S SAI160X450S
SAI160X500S SAI160X600S SAI160X700S SAI160X800S SAI160X900S
SAI200X25S SAI200X50S SAI200X75S SAI200X80S SAI200X100S
SAI200X125S SAI200X150S SAI200X160S SAI200X175S SAI200X200S
SAI200X250S SAI200X300S SAI200X350S SAI200X400S SAI200X450S
SAI200X500S SAI200X600S SAI200X700S SAI200X800S SAI200X900S
